Description
Product Details
Features:

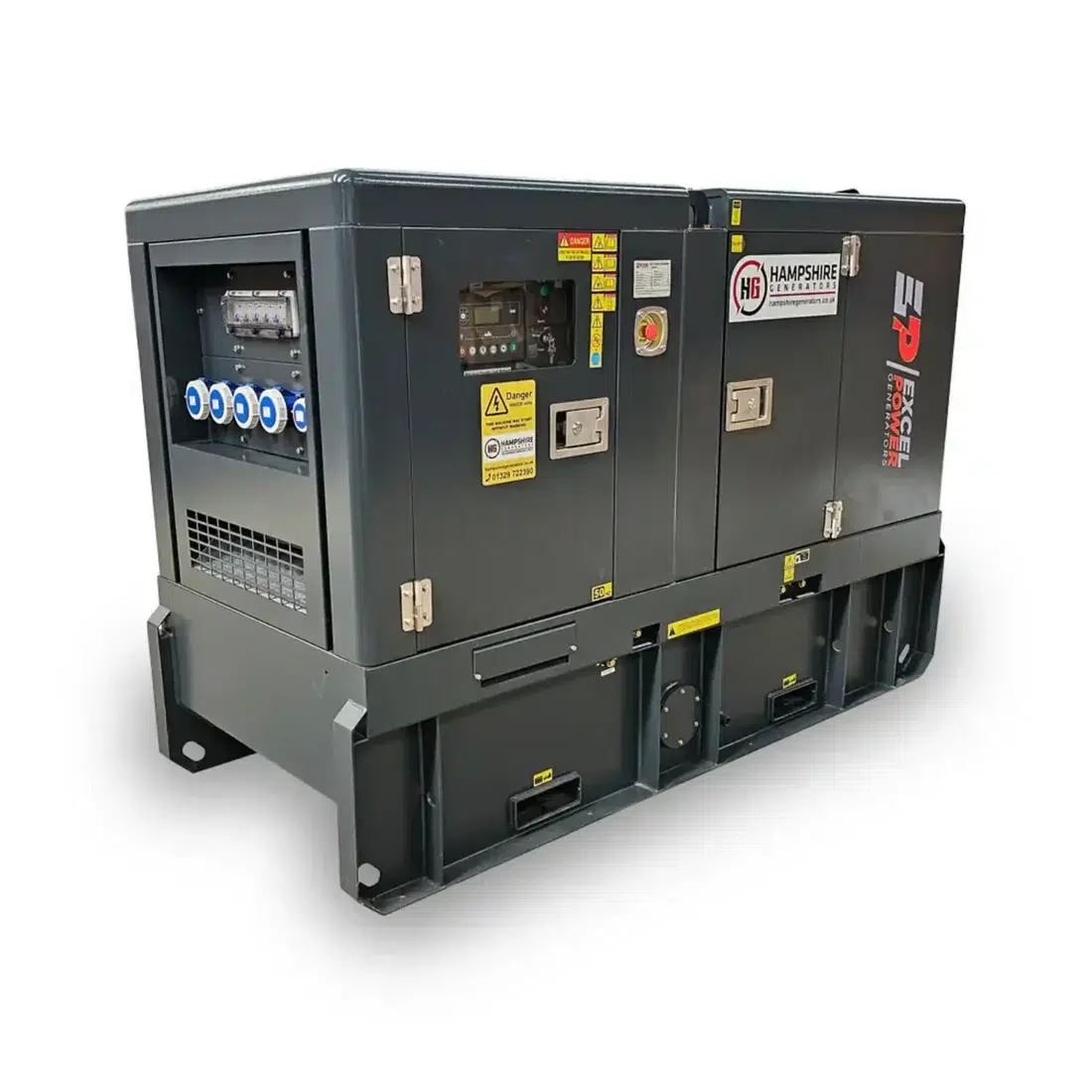

- 30kVA Prime Power / 33kVA Standby Power
- Single Phase generator 240V – 50HZ
- Stage V Emissions Certified
- High quality water cooled 1500RPM Raywin diesel engine
- High quality Stamford alternator

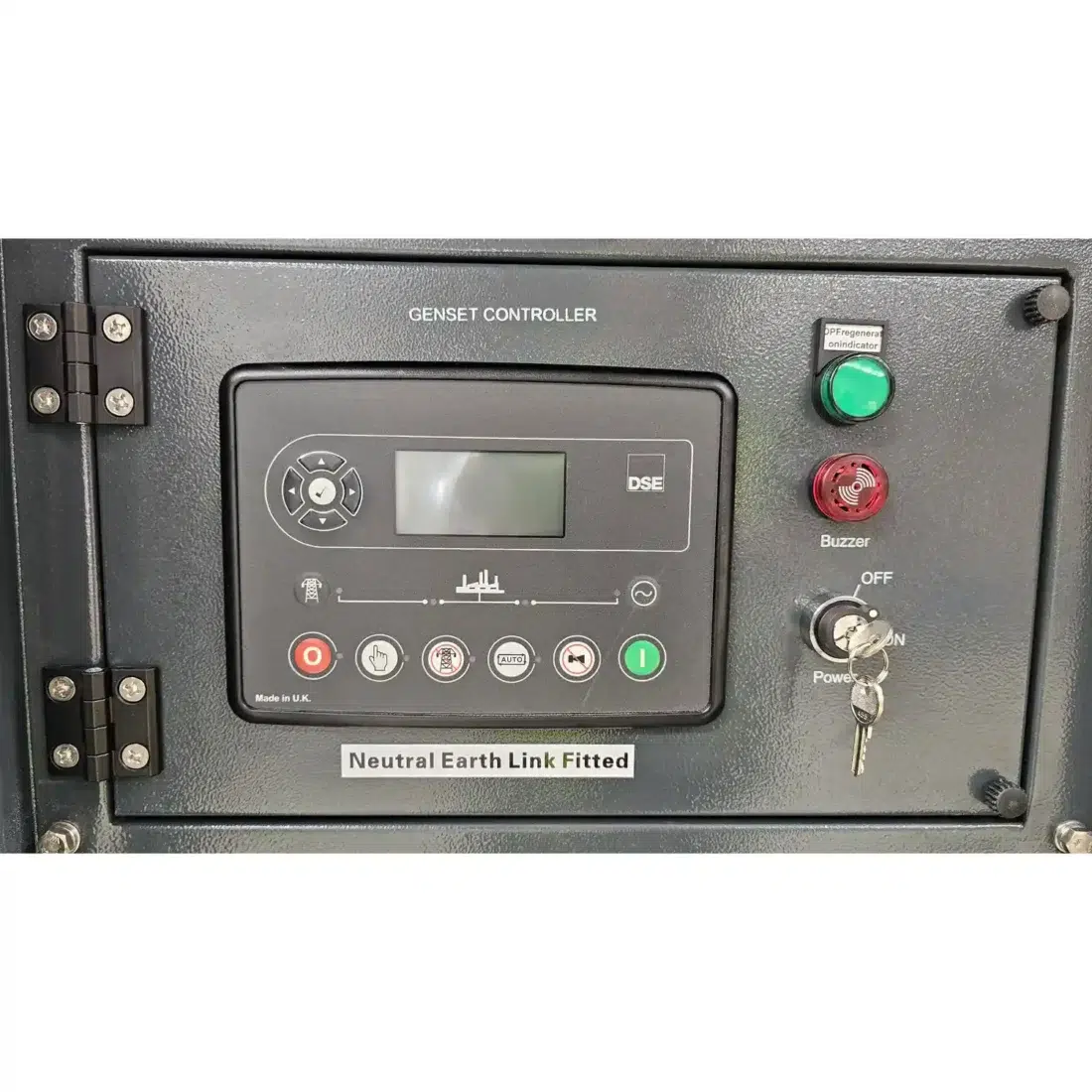

- Deepsea DSE6120 control panel for easy operation
- Rated at just 68 dB(A) at 7 meters
Specification
• Manufacturer: Excel Power
• Model Number: XL-DYN-33S
• Output Rating: 230V, 50Hz, 1500RPM
• Prime Power: 30kVA / 30kW
• Standby Power: 33kVA / 33kW
• Noise Level @ 7m: 68 dB(A)

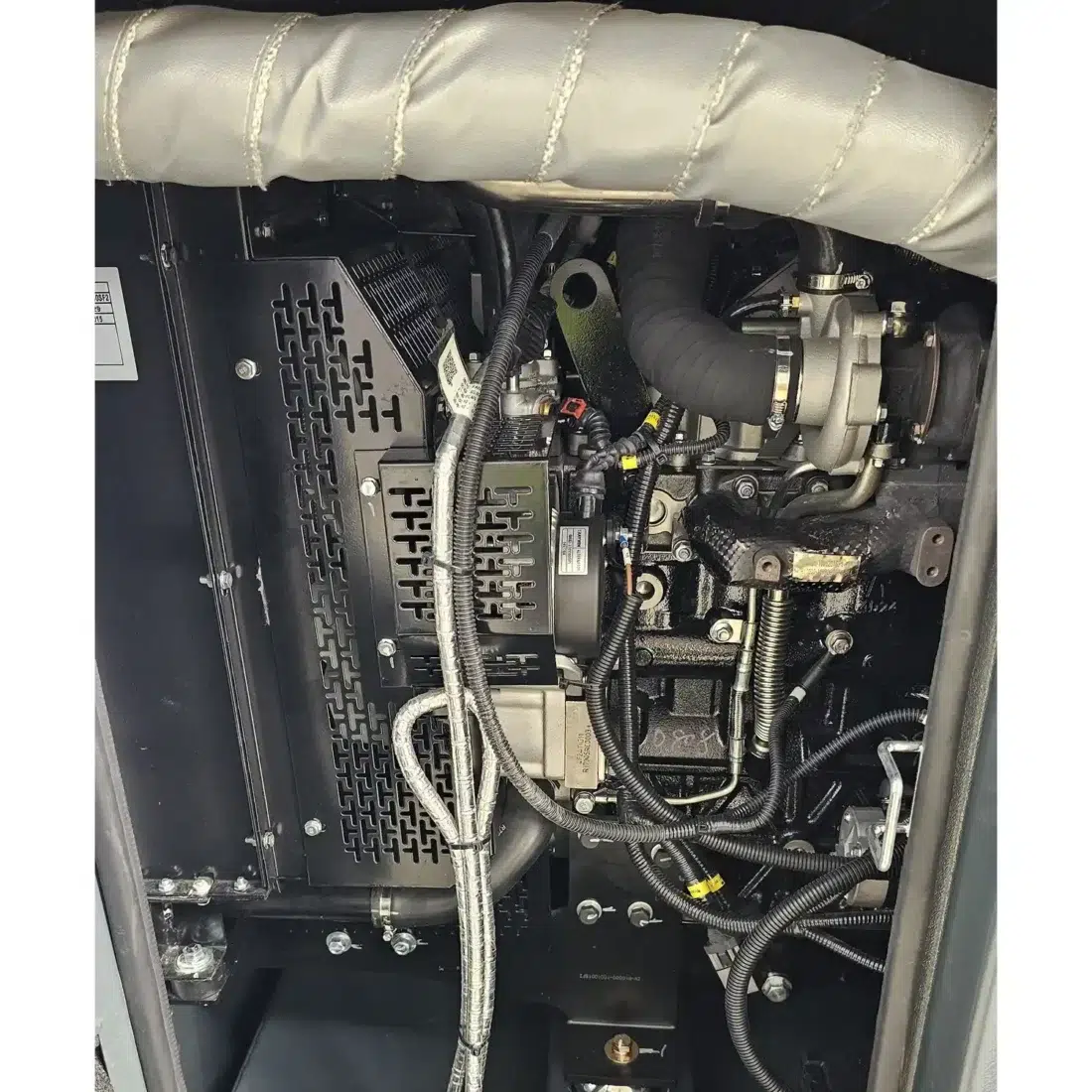

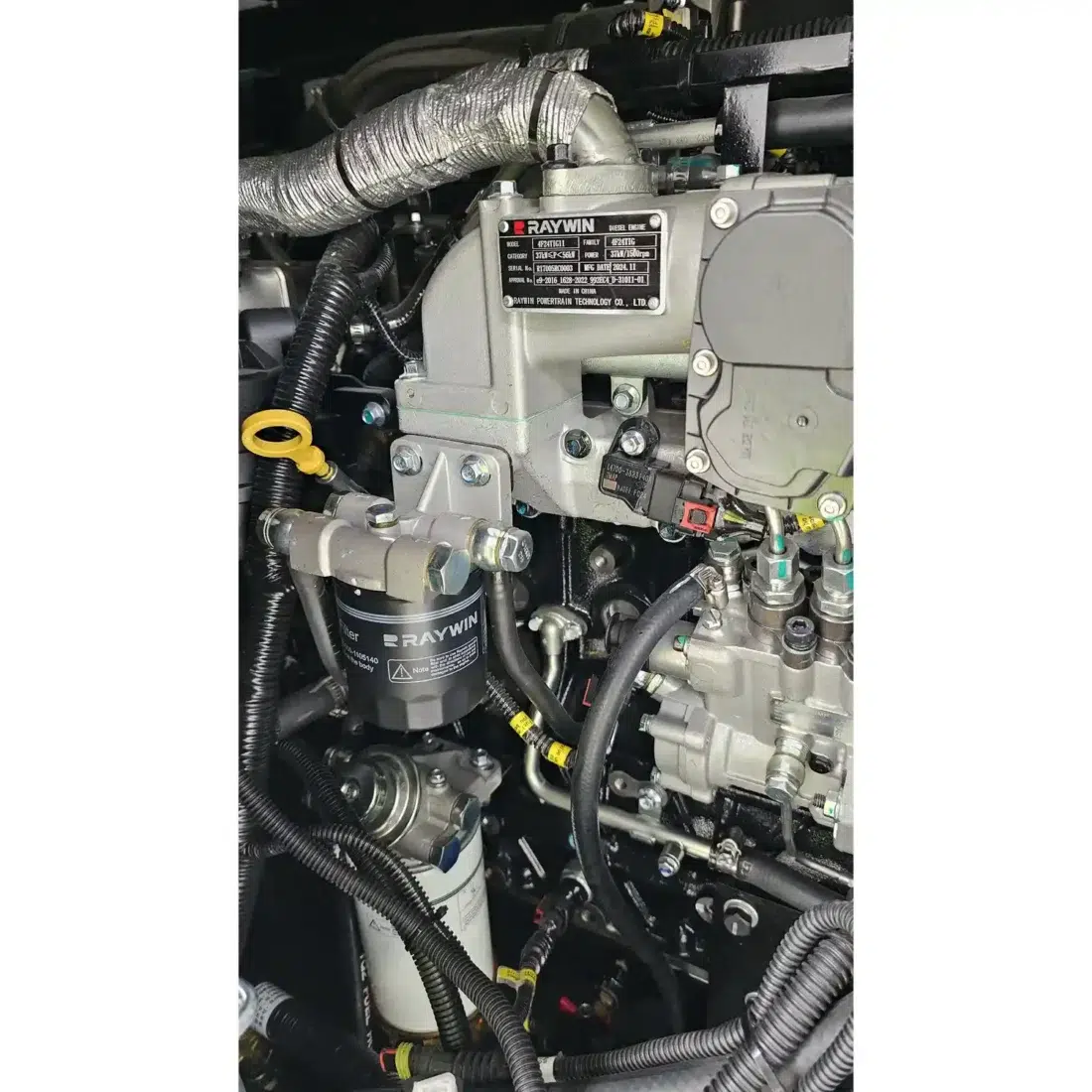

• Engine Make: RAYWIN
• Engine Model: 4F24TIG11
• Governing Type: ECU / Electronic
• Cylinders: 4
• Cylinder Arrangement: In-Line
• Bore & Stroke: 87 x 103mm
• Displacement: 2.45L
• Aspiration: Naturally Aspirated
• Cycle: 4-Stroke
• Compression Ratio: 19:1

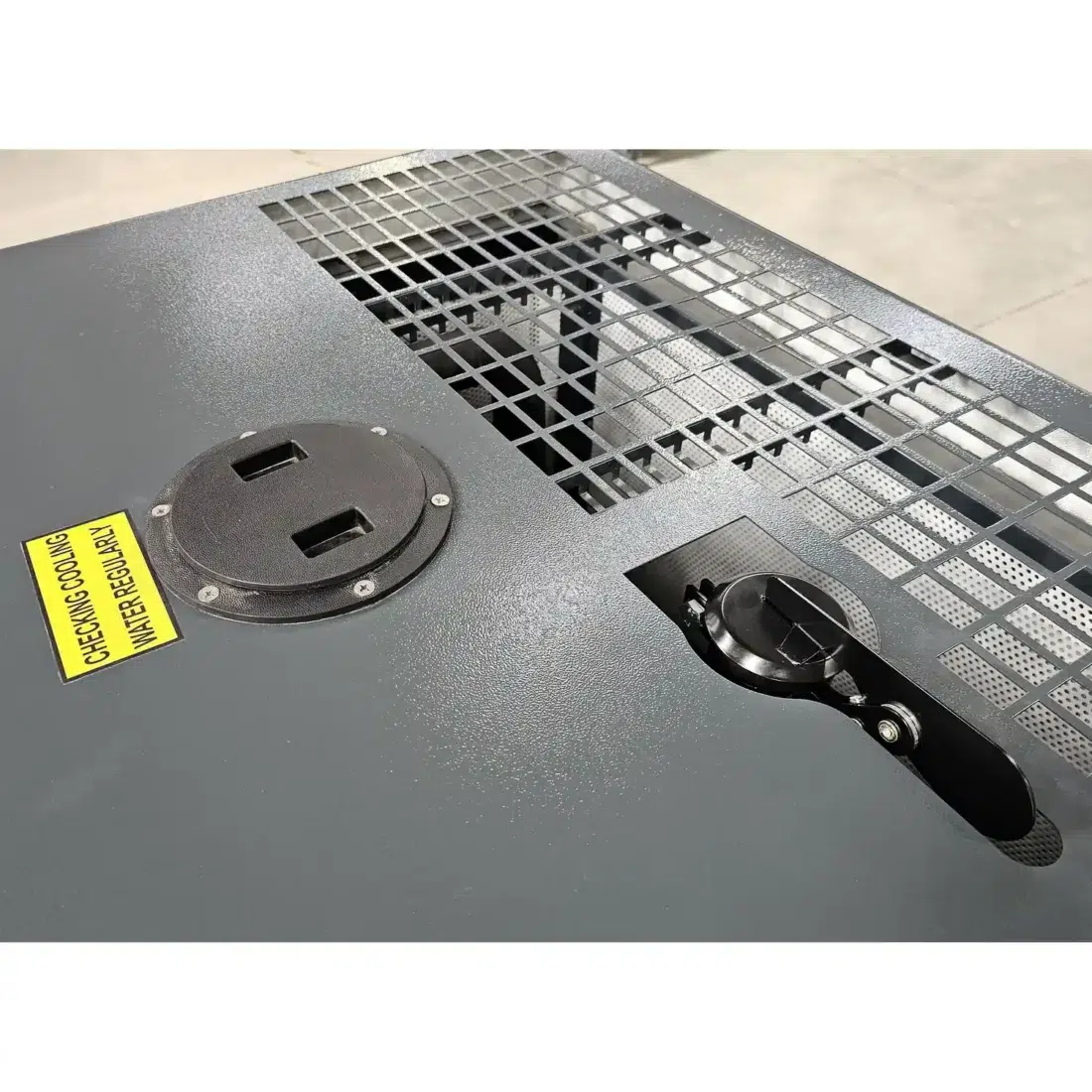

• Cooling System: Water-Cooled
• Engine Speed: 1500RPM
• Gross Engine Power (Prime): 37kW
• Fuel Consumption @ 100% Load: 10.1 L/hr

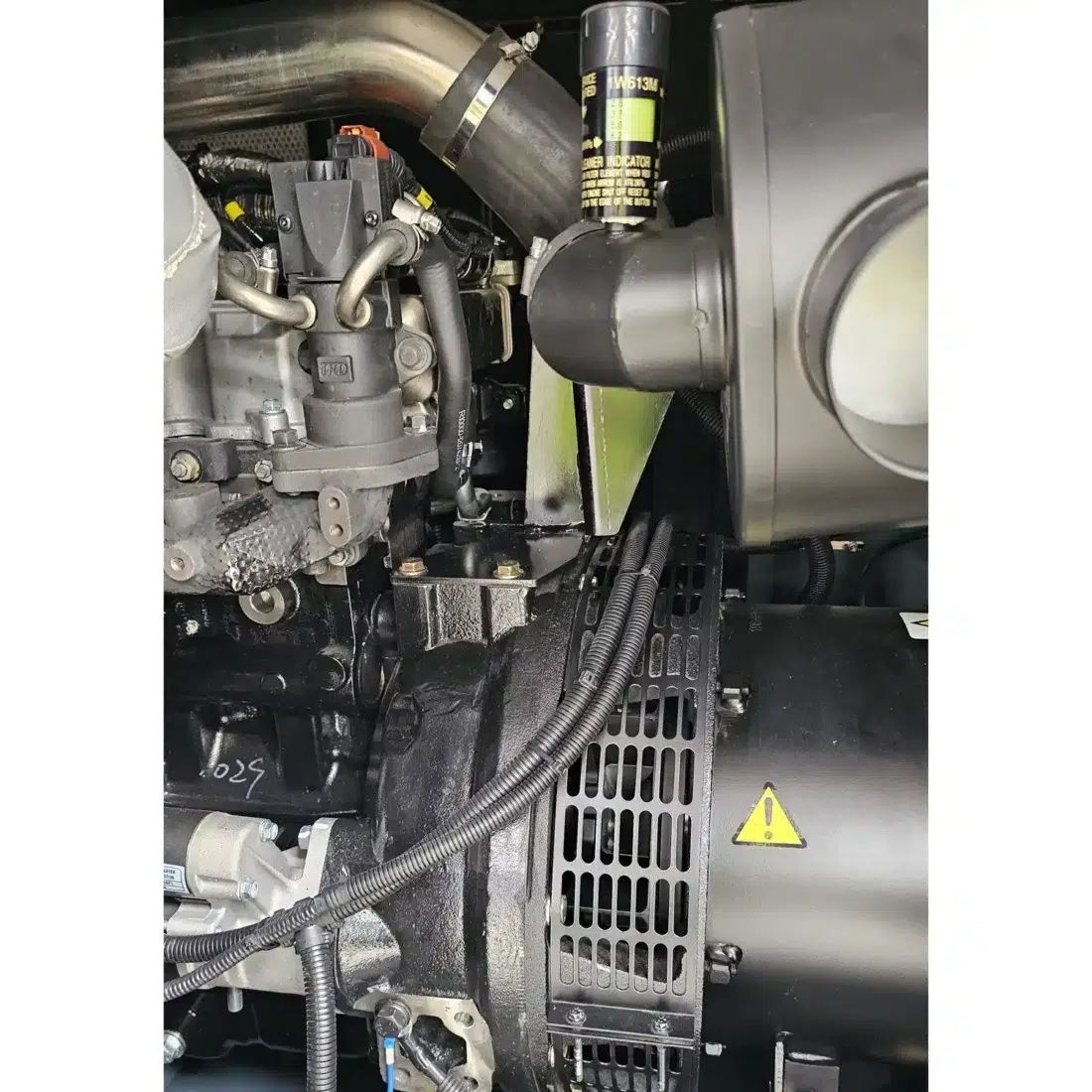

• Alternator Make: Stamford
• Alternator Model: S1L2-R
• Bearings: 1
• Insulation Class: H
• Ingress Protection: IP23
• Excitation System: Shunt
• Voltage Regulation: ±1%

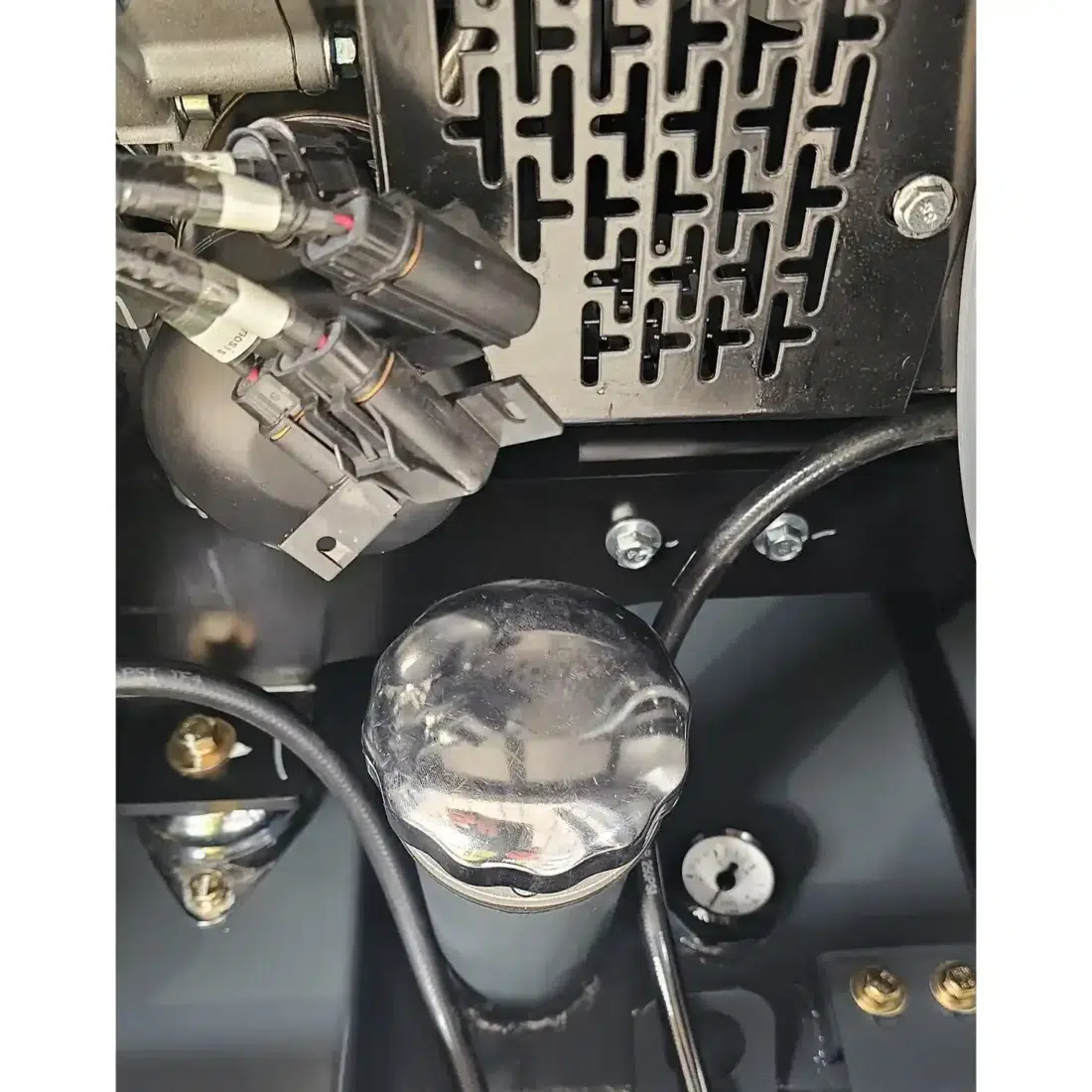

• Fuel Tank: 216L
• Weight: 1250kg
• Dimensions (L x W x H): 2280 x 1000 x 1500mm

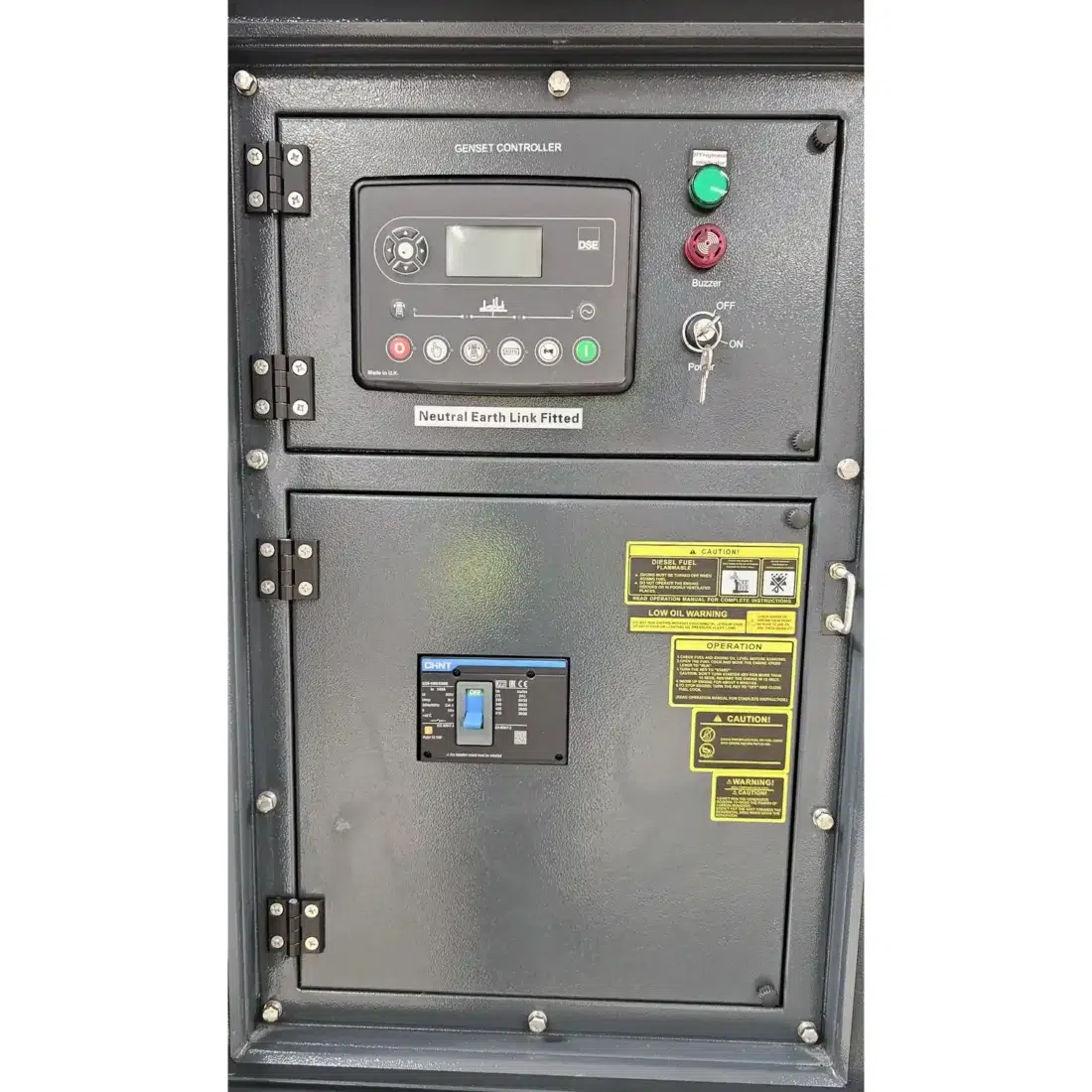

• Control Panel: Deepsea DSE6120

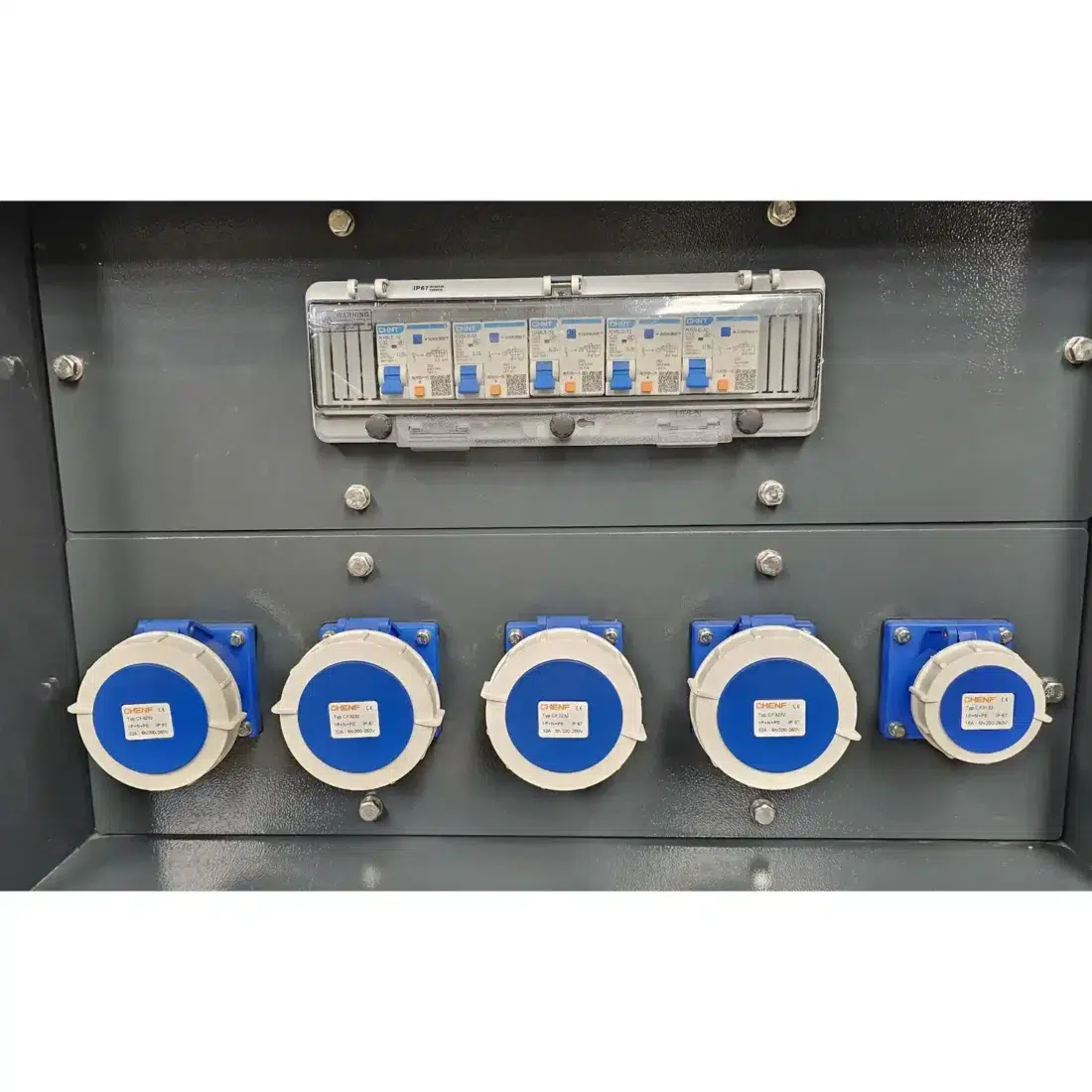

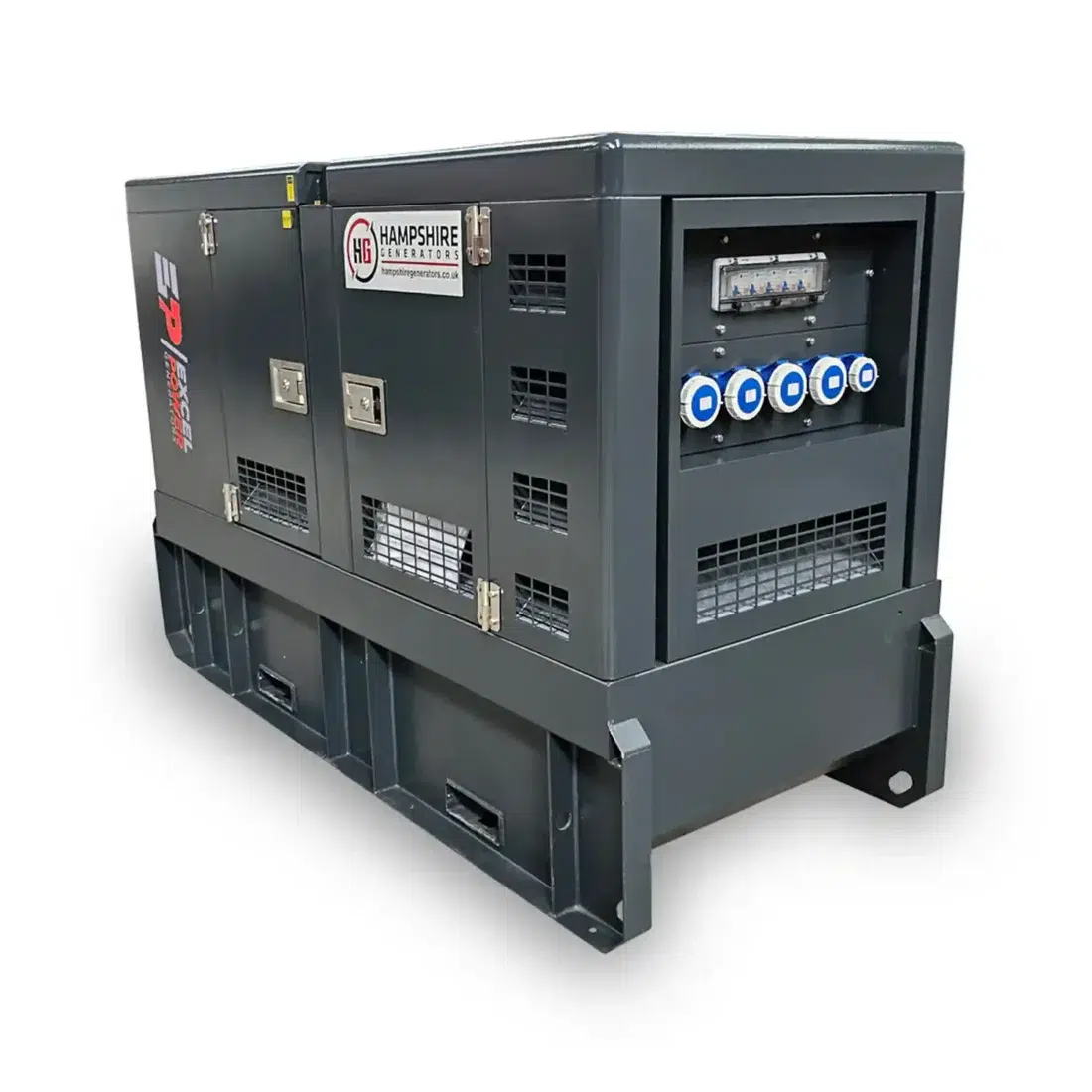

• Connection Type: Hard-Wired & Sockets (1x 16A, 4x 32A)
