Description
Product Details
Features:
- 10kVA Prime Power / 11kVA Standby Power
- Single Phase generator 240V – 50HZ

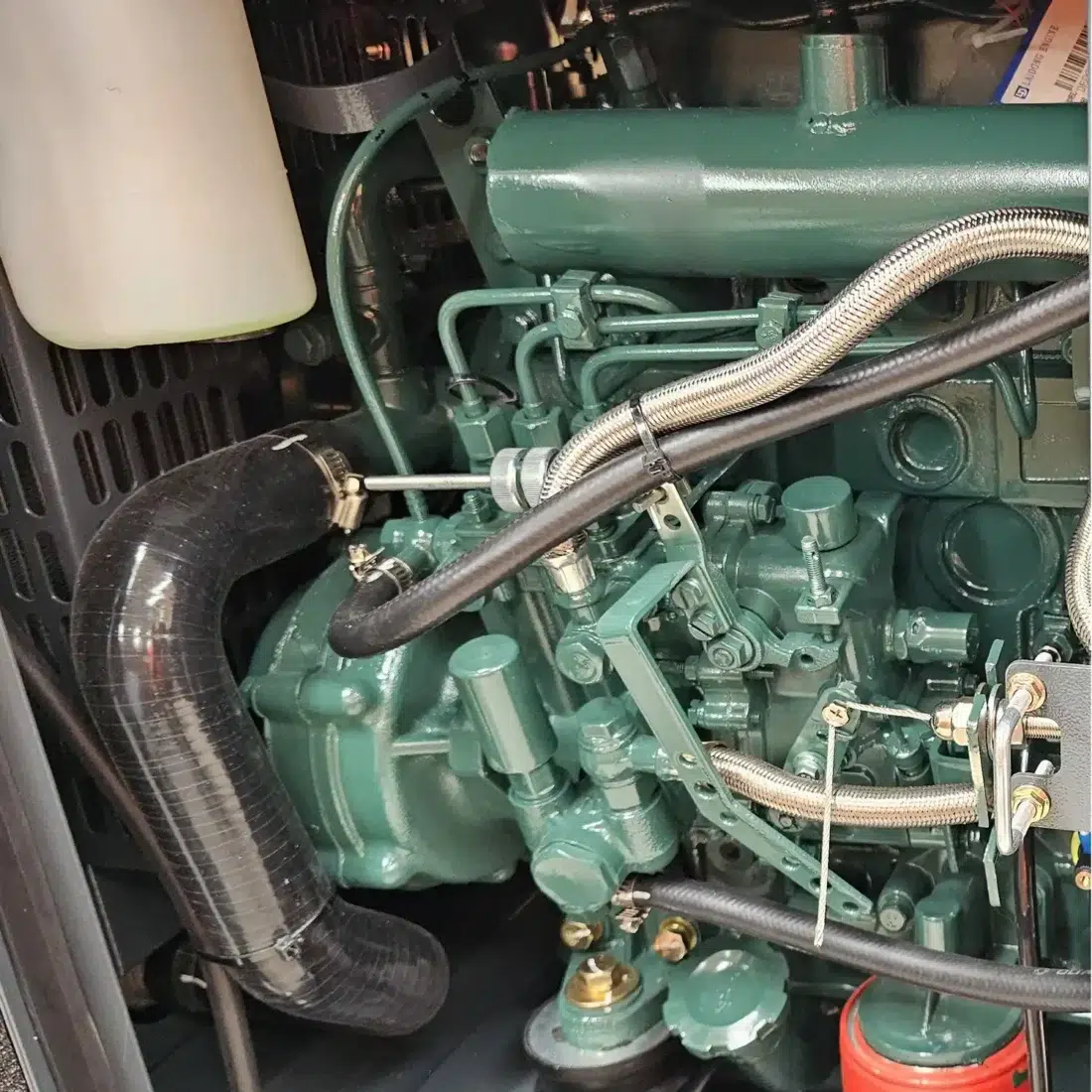

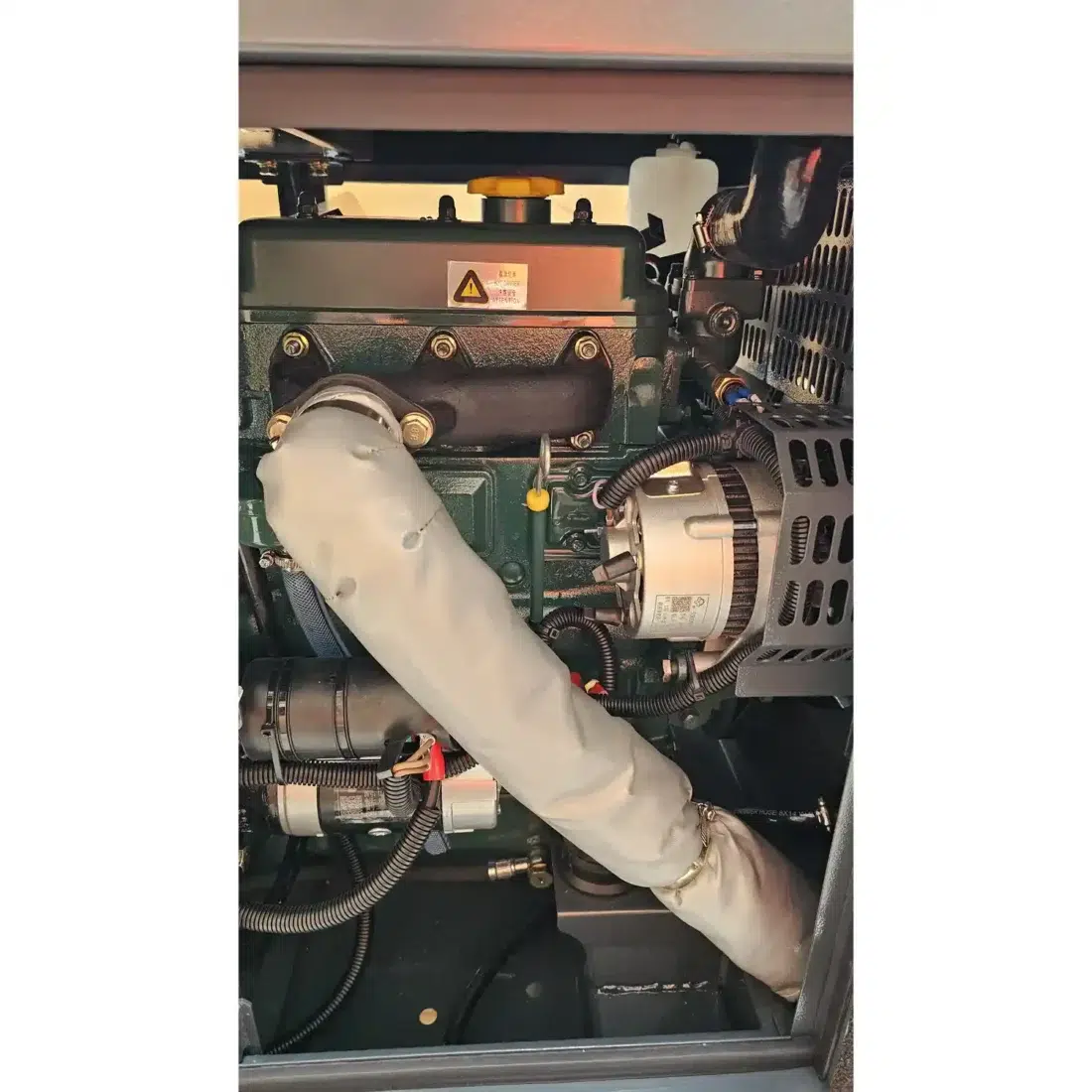

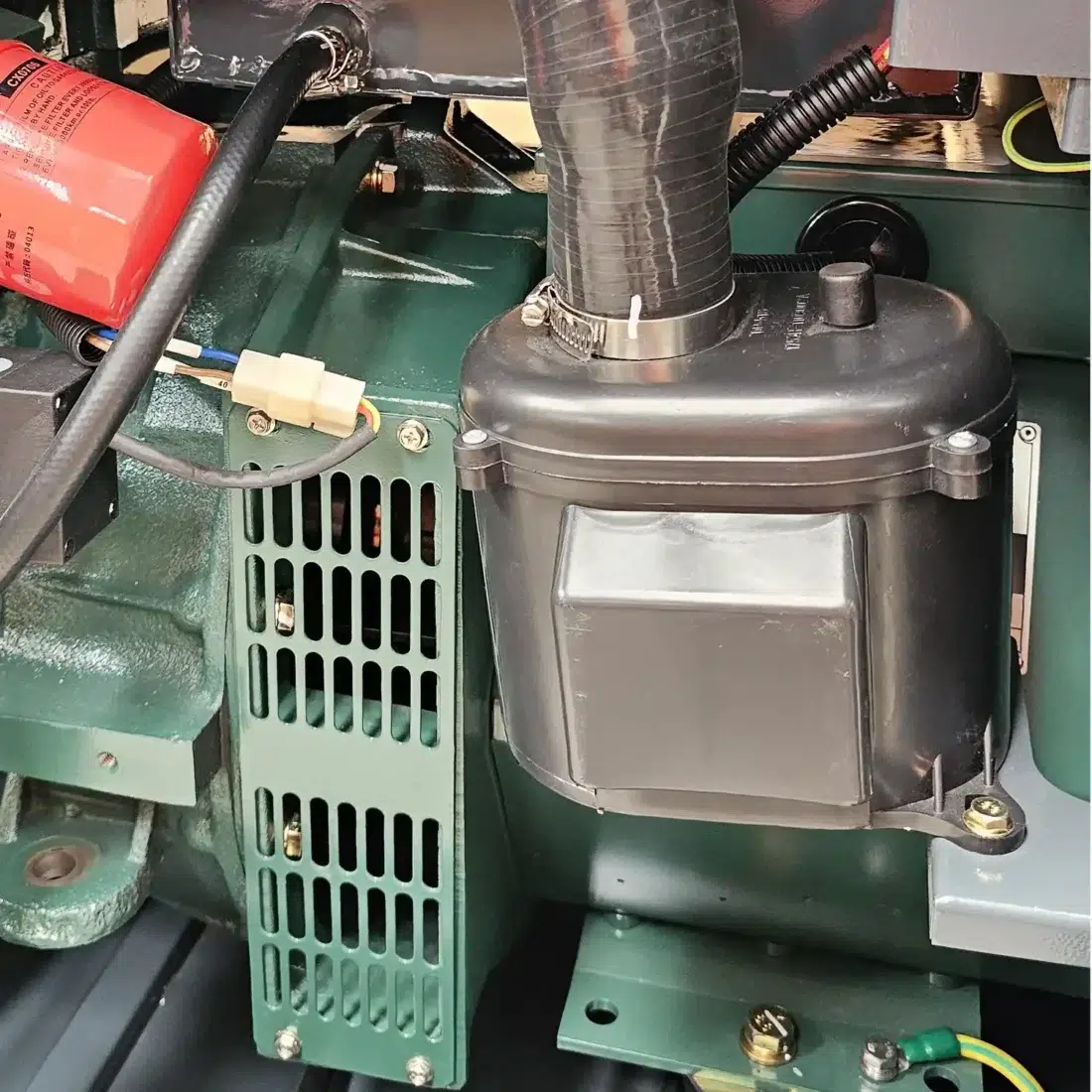

- High quality water cooled 1500RPM Depco diesel engine
- High quality Depco alternator

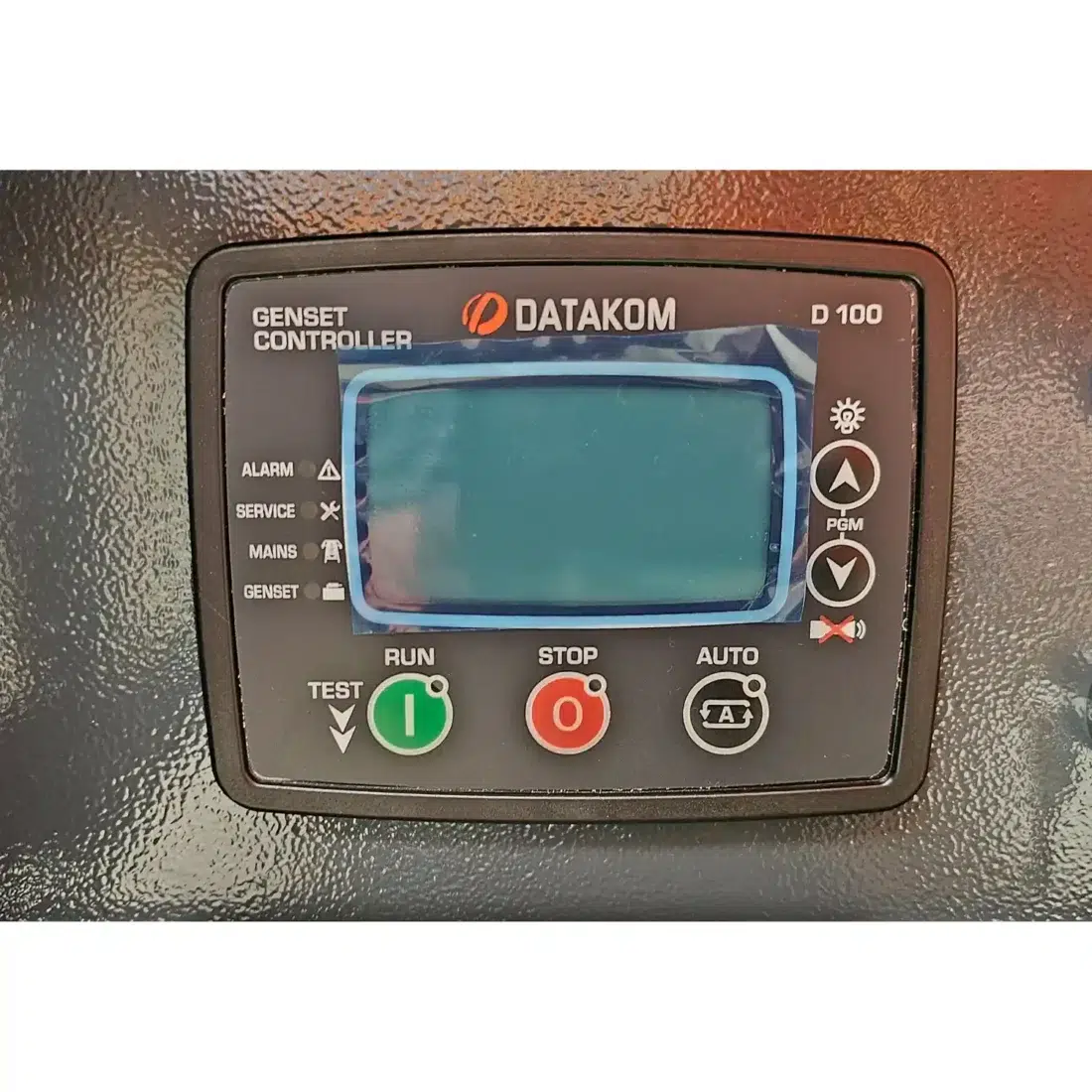

- Datakom D100 control panel for easy operation
- Rated at just 68 dB(A) at 7 meters
Specification
• Manufacturer: Excel Power
• Model Number: XL-DK-11S
• Output Rating: 230V, 50Hz, 1500RPM
• Prime Power: 10kVA / 10kW
• Standby Power: 11kVA / 11kW
• Noise Level @ 7m: 68 dB(A)

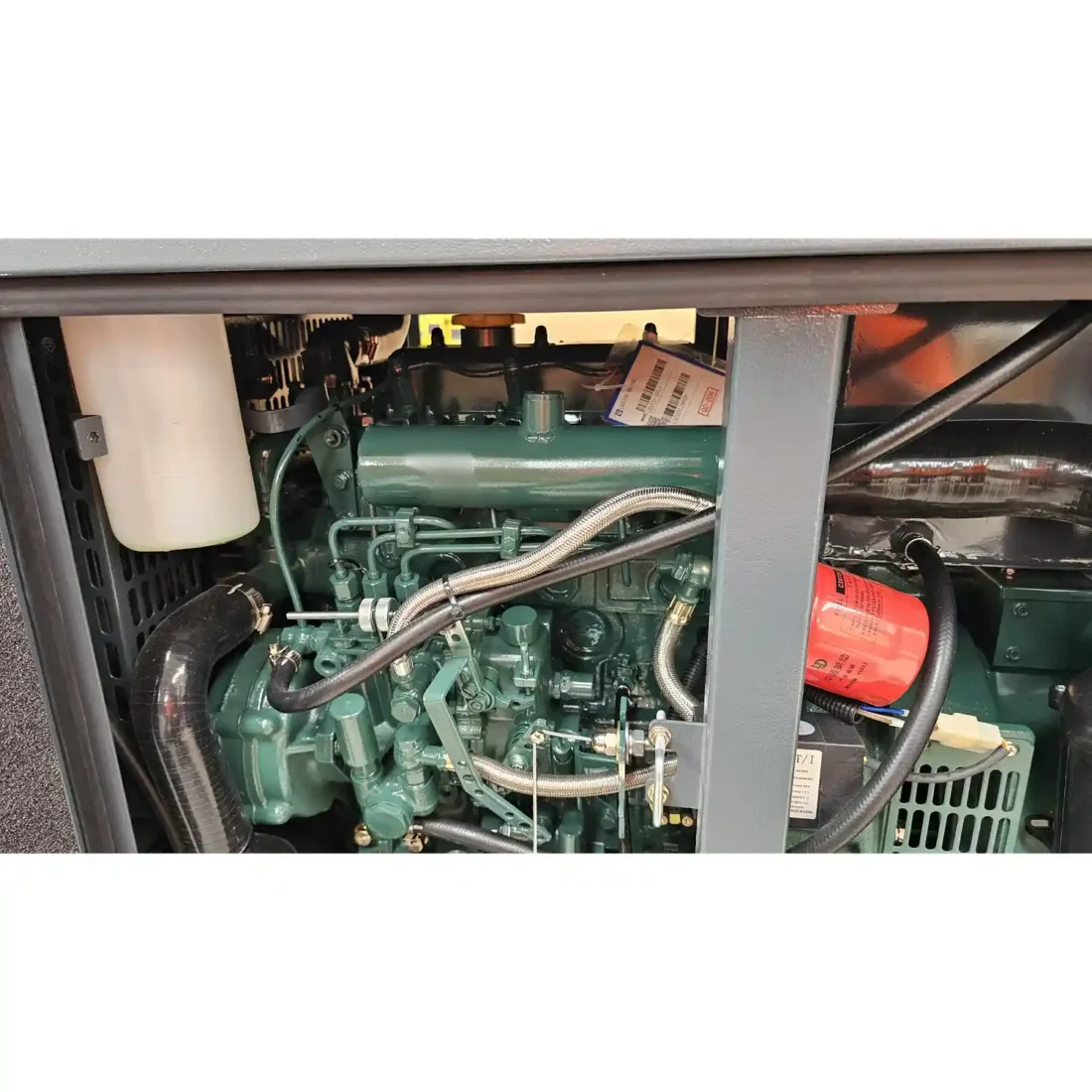

• Engine Make: DEPCO
• Engine Model: 385

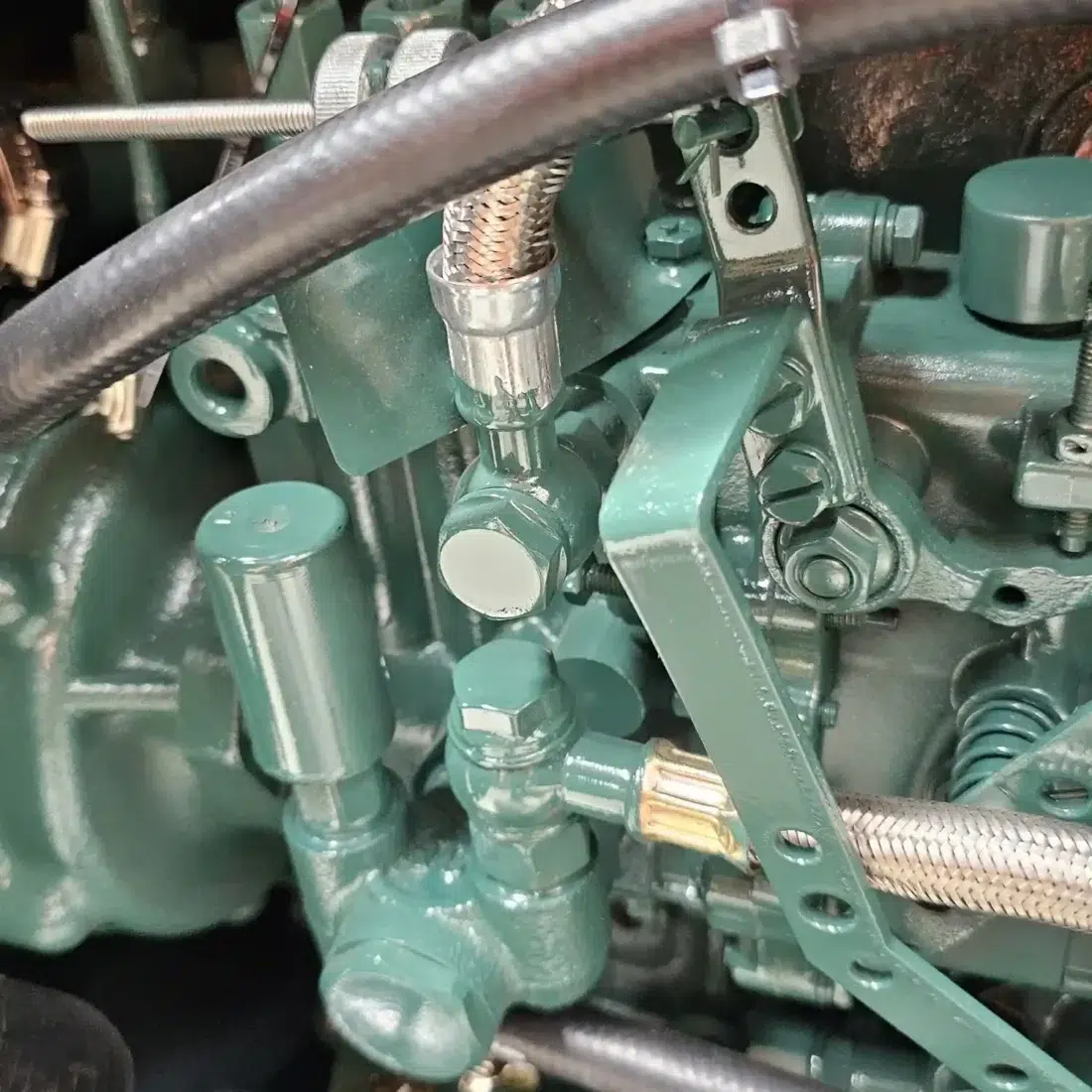

• Governing Type: Mechanical
• Cylinders: 3
• Cylinder Arrangement: In-Line
• Bore & Stroke: 85 x 90mm
• Displacement: 1.532L
• Oil Capacity: 4.5L
• Aspiration: Naturally Aspirated
• Cycle: 4-Stroke
• Compression Ratio: 18:1
• Cooling System: Water-Cooled
• Engine Speed: 1500RPM
• Gross Engine Power (Prime): 12kW
• Fuel Consumption @ 100% Load: 2.3 L/hr
• Alternator Make: DEPCO
• Alternator Model: 10-1
• Bearings: 1
• Insulation Class: H
• Ingress Protection: IP23
• Excitation System: Self-Excitation
• Voltage Regulation: ±1%

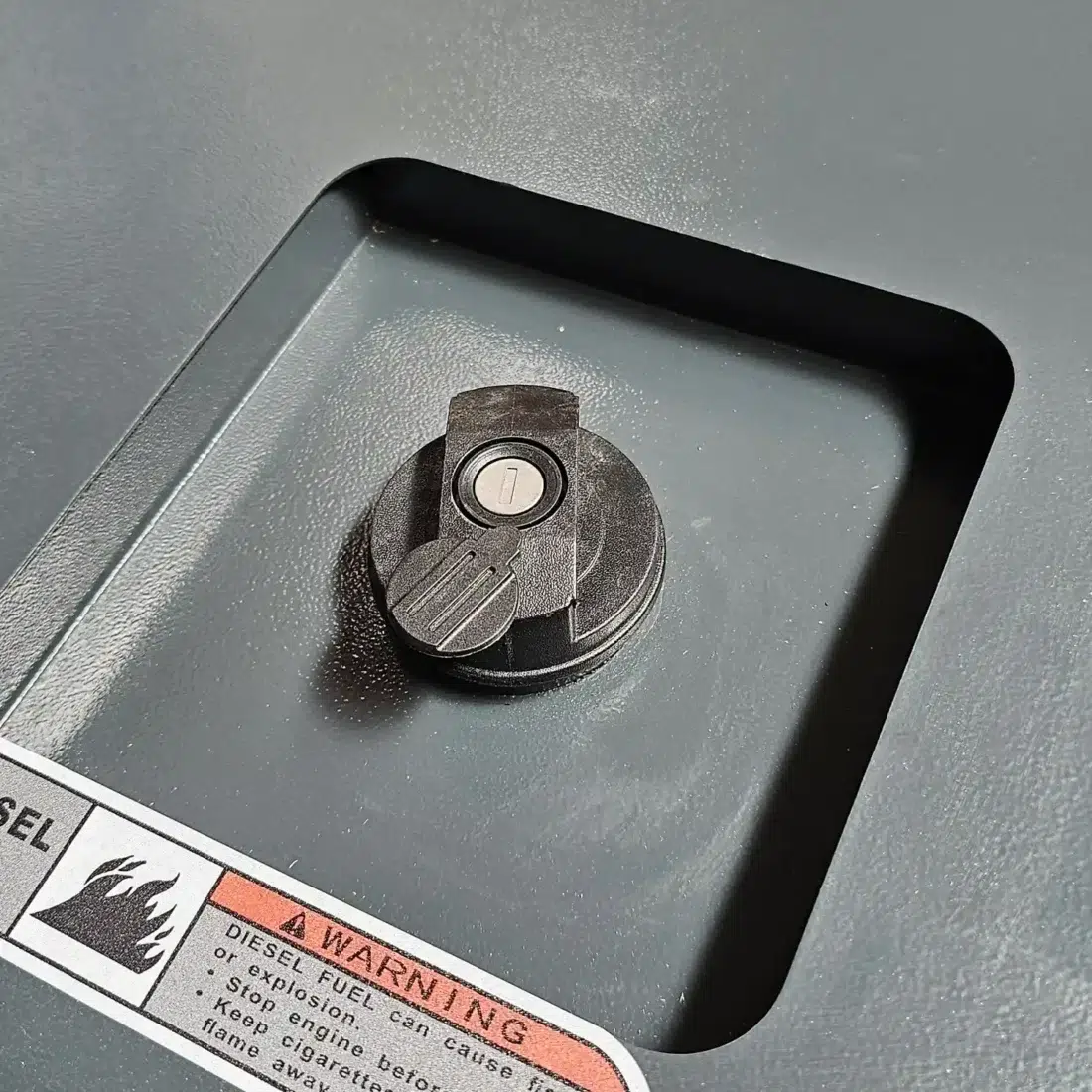

• Fuel Tank: 25L
• Weight: 440kg

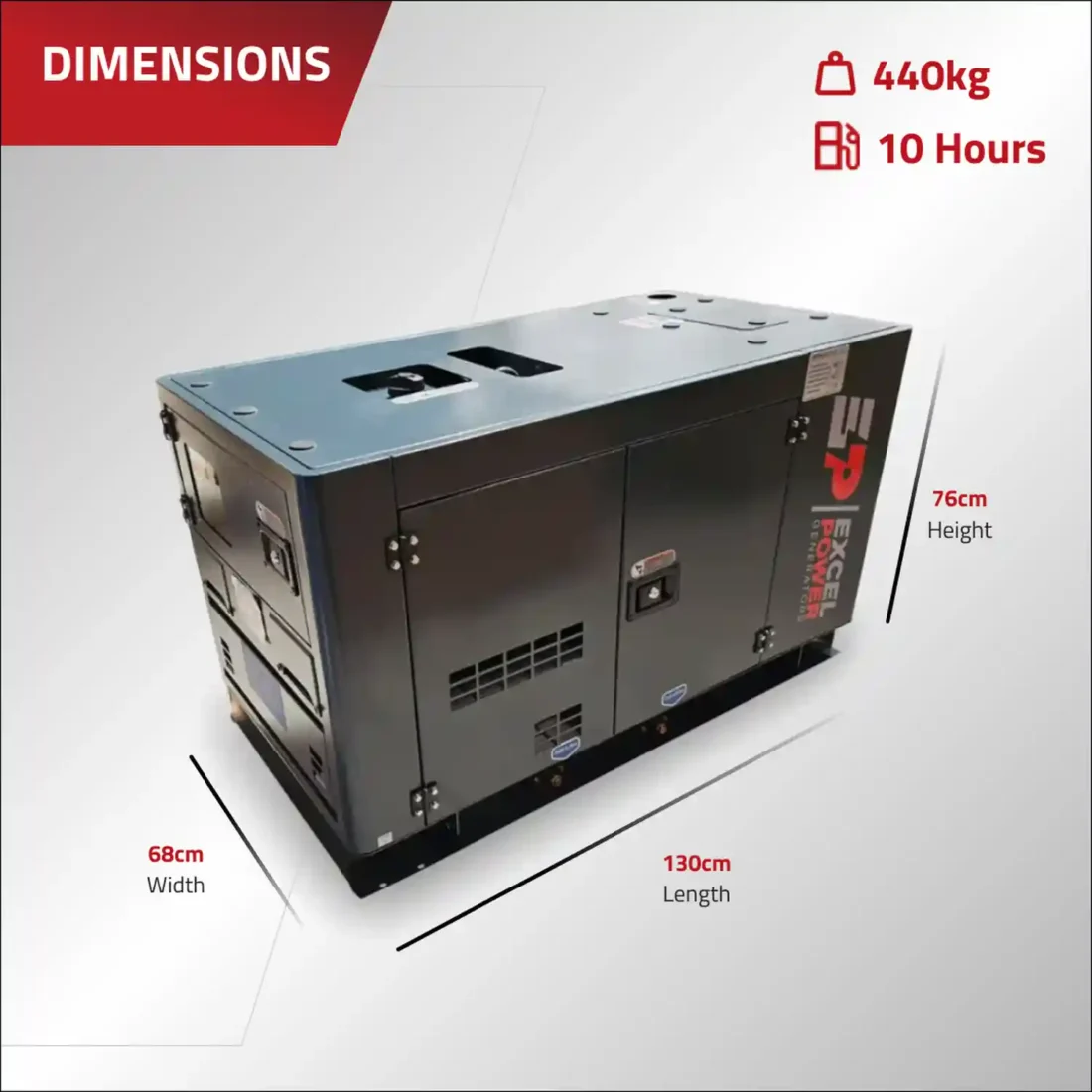

• Dimensions (L x W x H): 1300 x 680 x 760mm

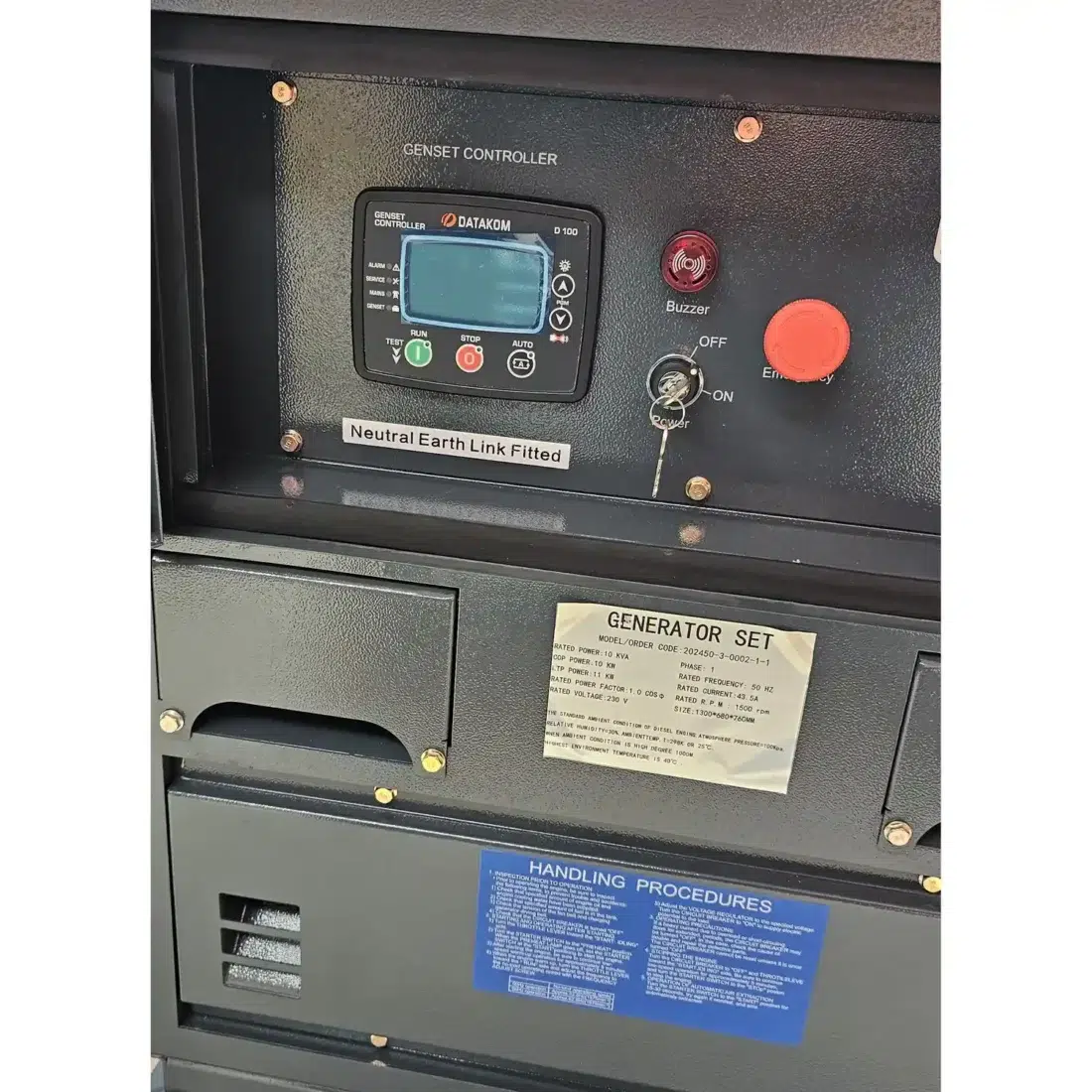

• Control Panel: Datakom D100
• Connection Type: Hard-Wired (Optional Socket Upgrade Available)
