Description
Product Details

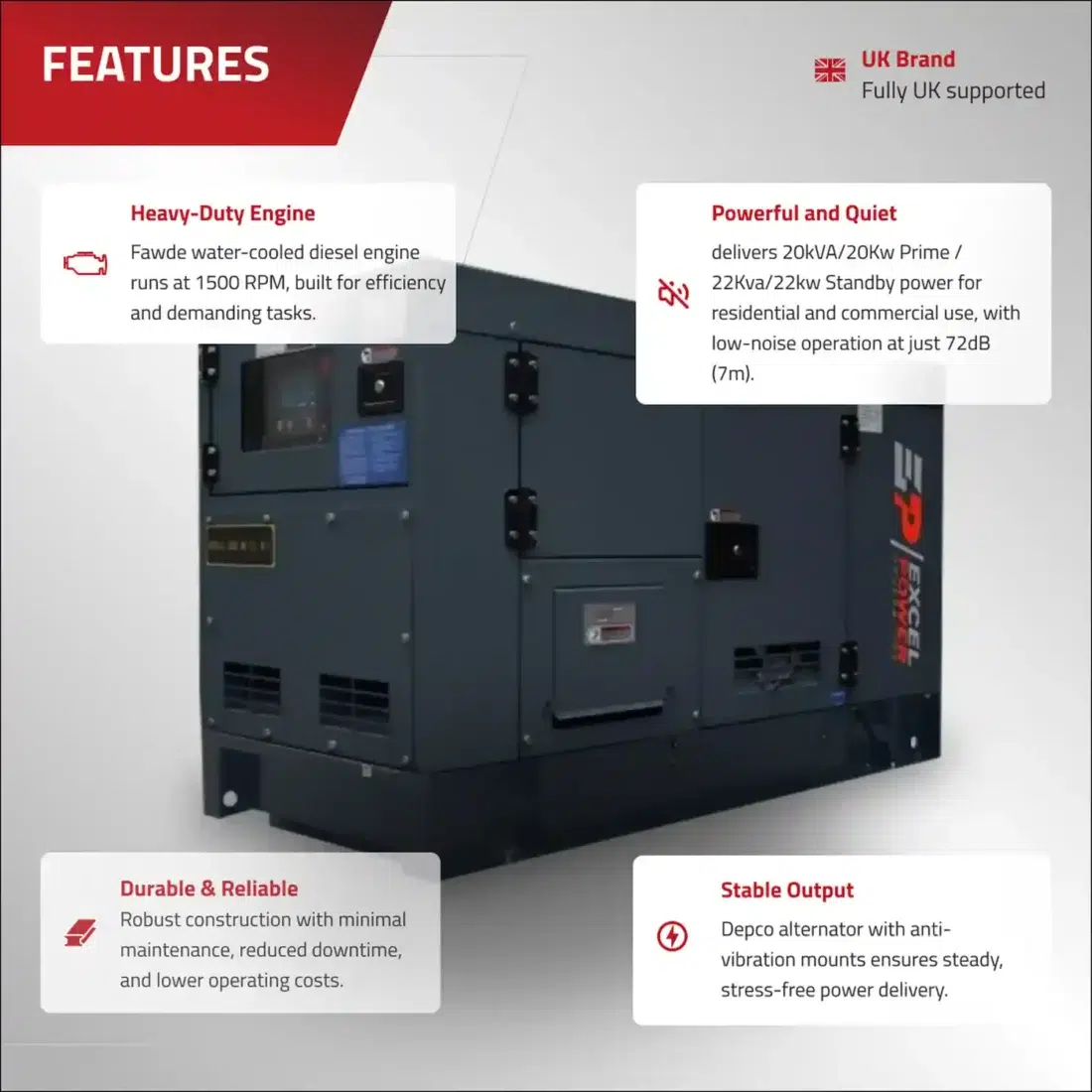

Features:
- 20kVA Prime Power / 22kVA Standby Power
- Single Phase generator 240V – 50HZ

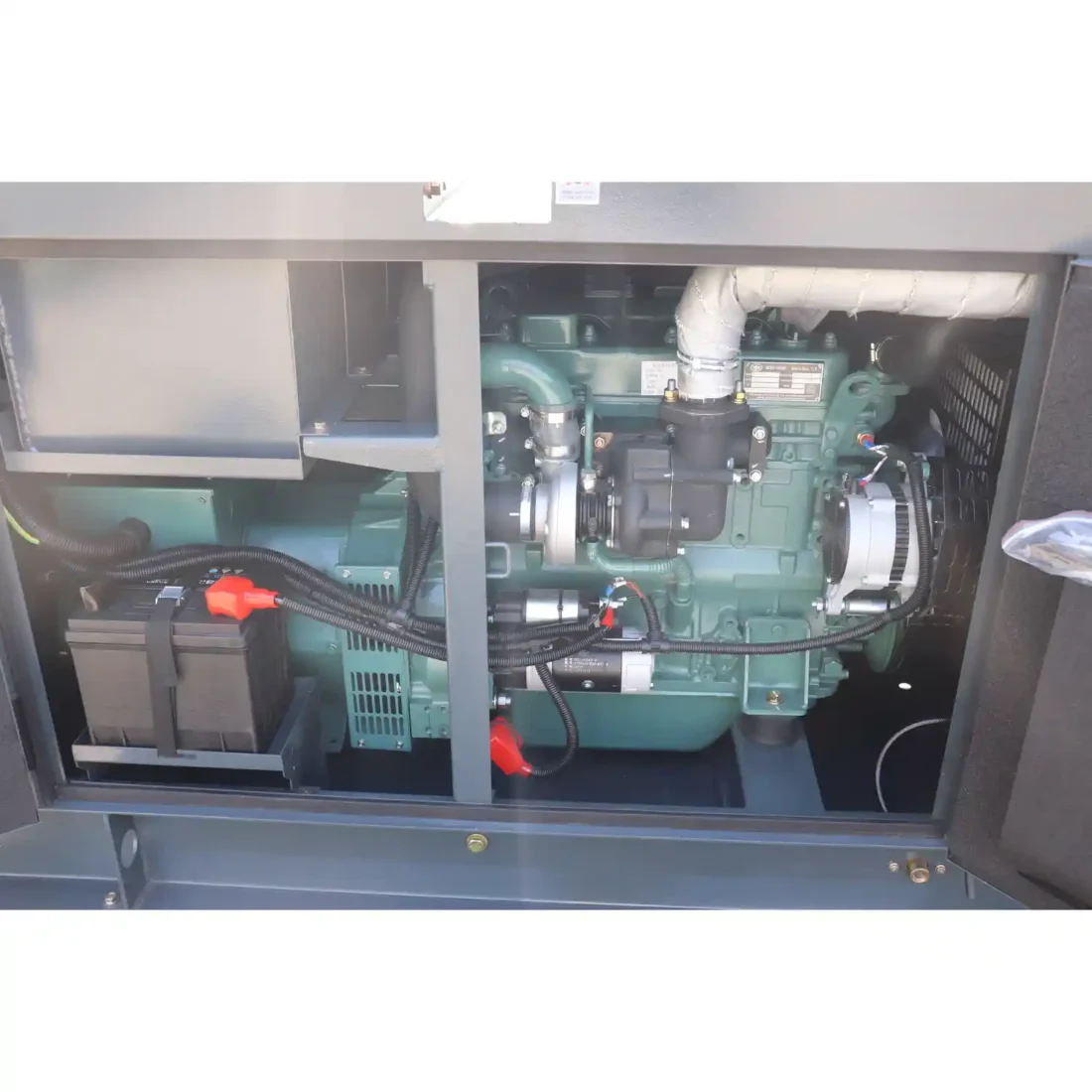

- High quality water cooled 1500RPM Fawde diesel engine
- High quality Depco alternator
- Deepsea DSE6120 control panel for easy operation
- Rated at just 72 dB(A) at 7 meters
Specification

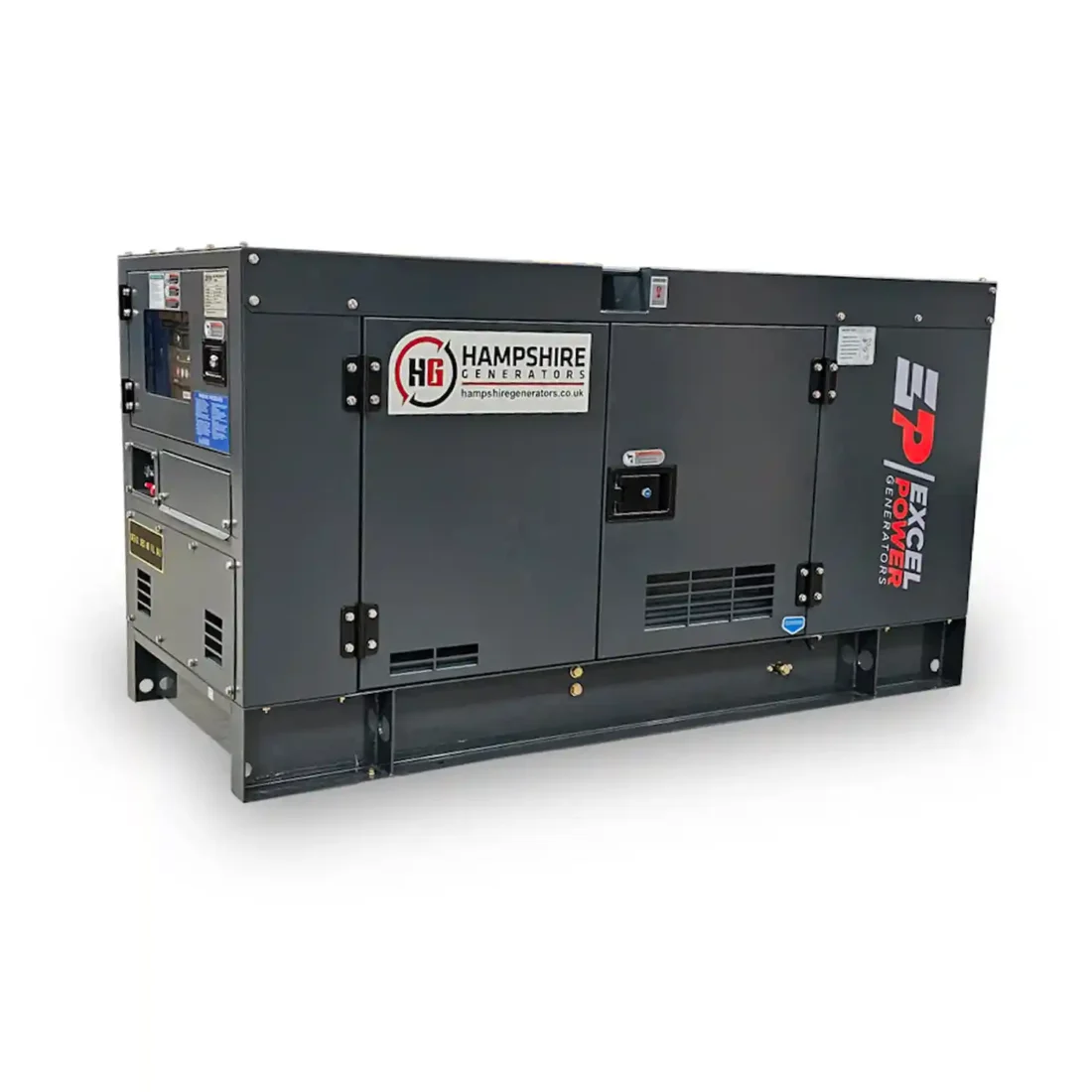

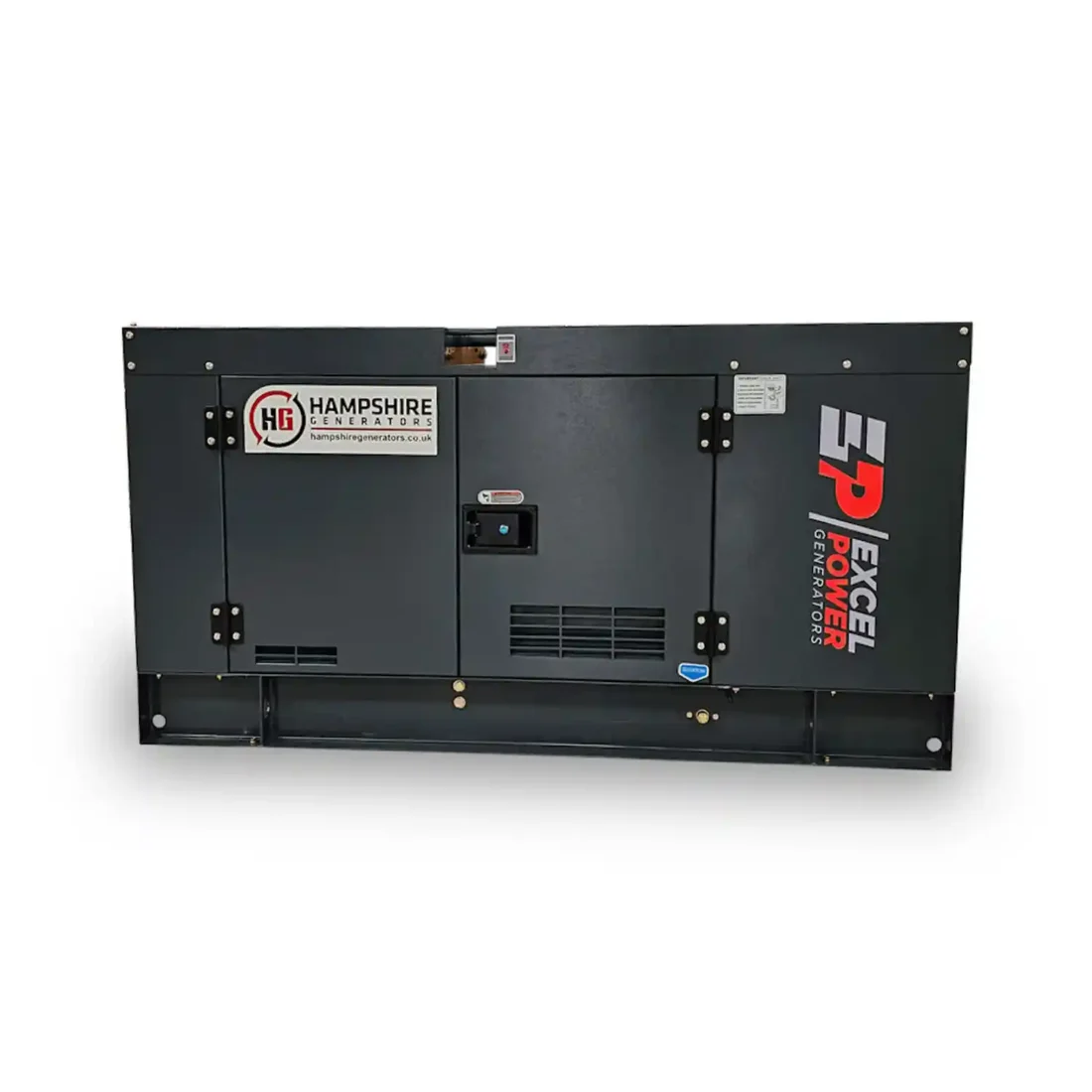

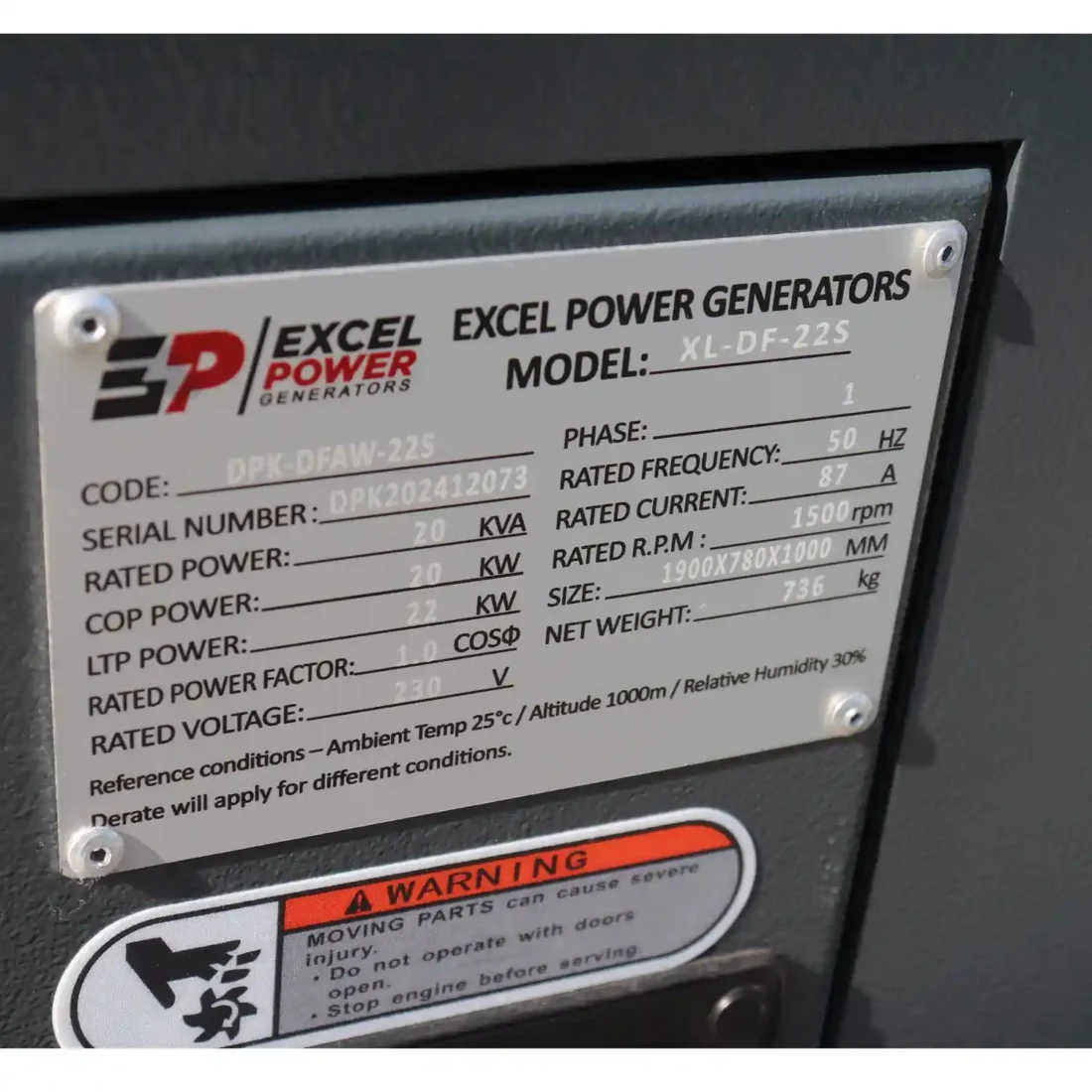

• Manufacturer: Excel Power
• Model Number: XL-DFAW-22S
• Output Rating: 230V, 50Hz, 1500RPM
• Prime Power: 20kVA / 20kW
• Standby Power: 22kVA / 22kW
• Noise Level @ 7m: 72 dB(A)

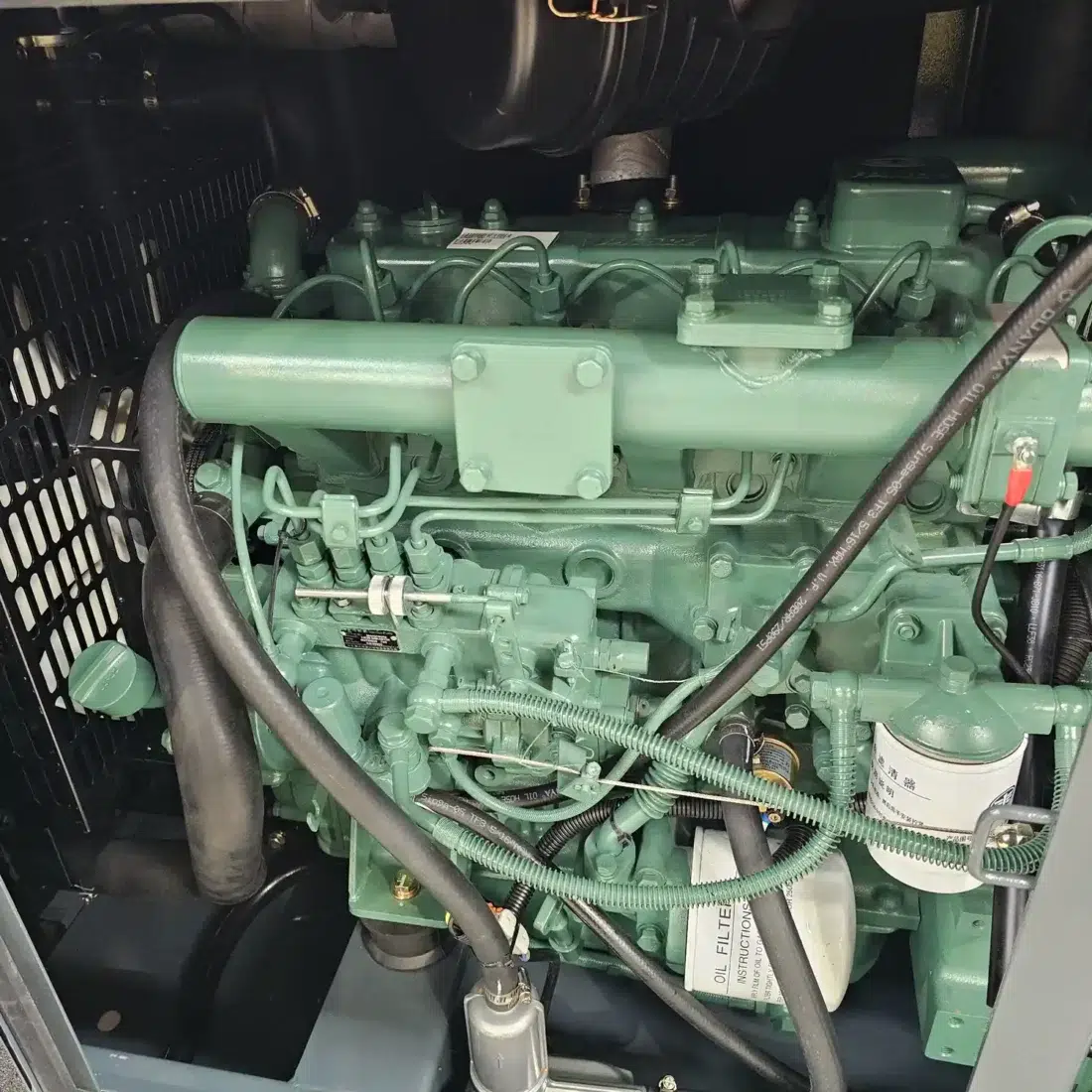

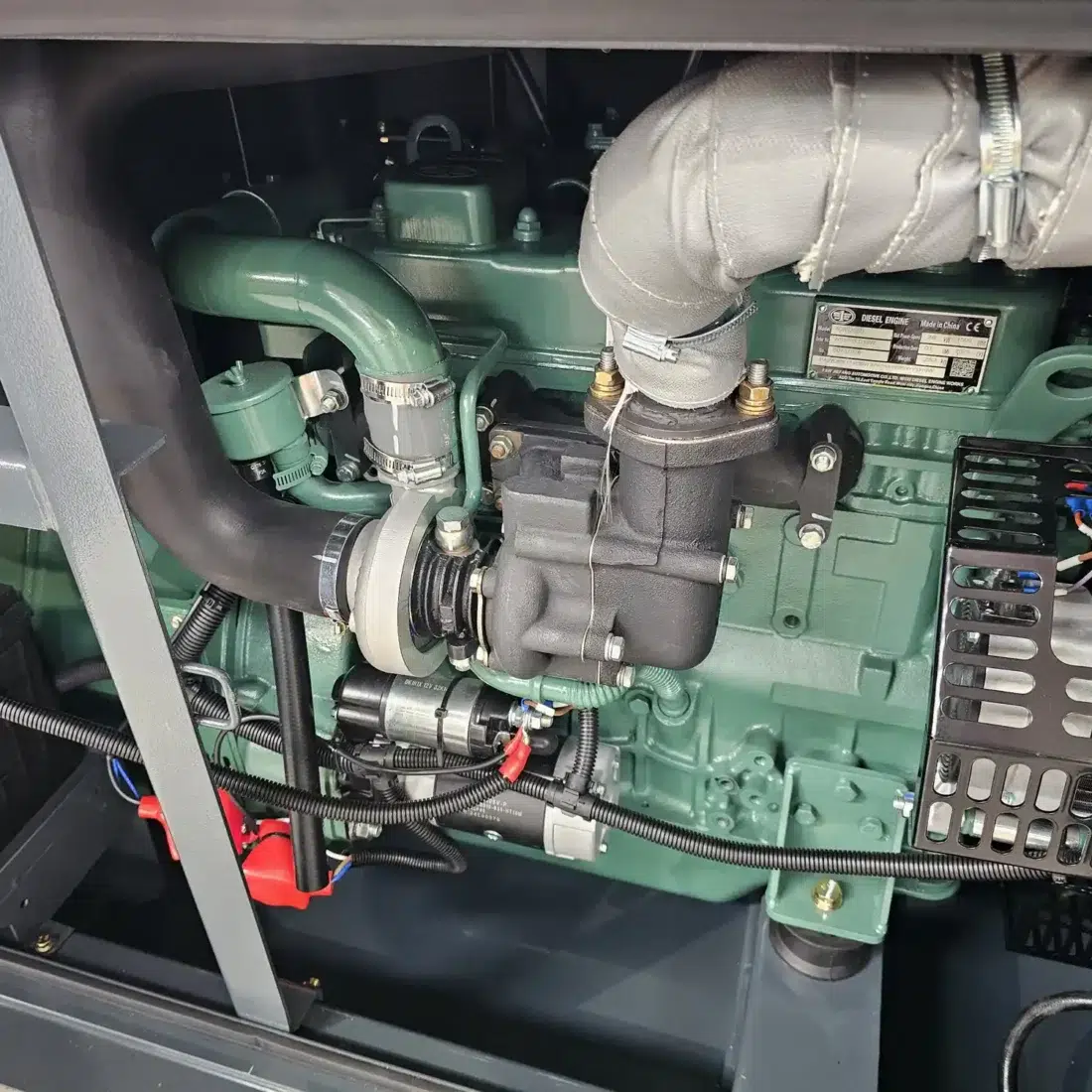

• Engine Make: FAWDE
• Engine Model: 4DW92-35D
• Governing Type: Mechanical
• Cylinders: 4
• Cylinder Arrangement: In-Line
• Bore & Stroke: 90 x 100mm
• Displacement: 2.54L

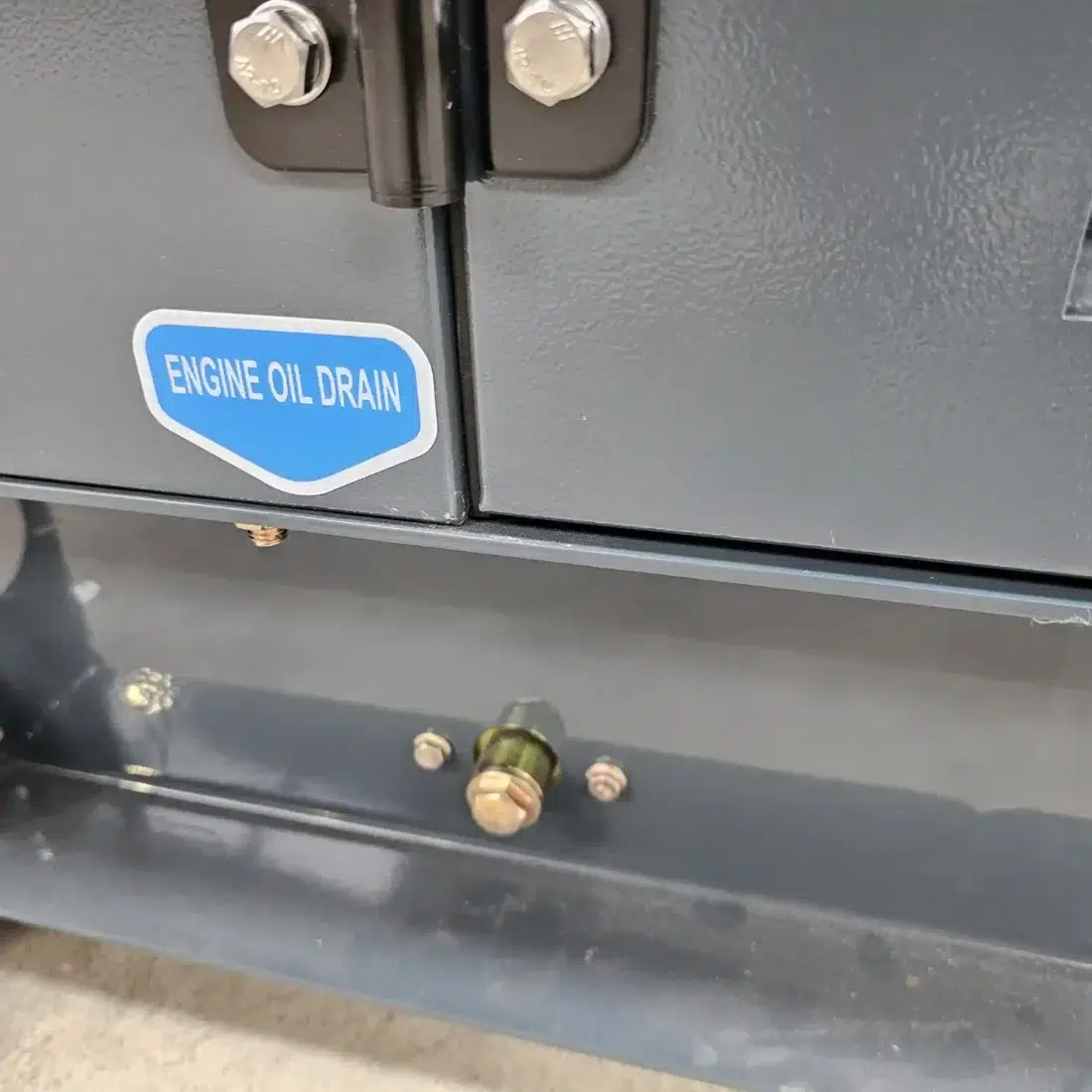

• Oil Capacity: 8L
• Aspiration: Naturally Aspirated
• Cycle: 4-Stroke
• Compression Ratio: 17:1
• Cooling System: Water-Cooled
• Engine Speed: 1500RPM
• Gross Engine Power (Prime): 26kW
• Fuel Consumption @ 100% Load: 5.48 L/hr

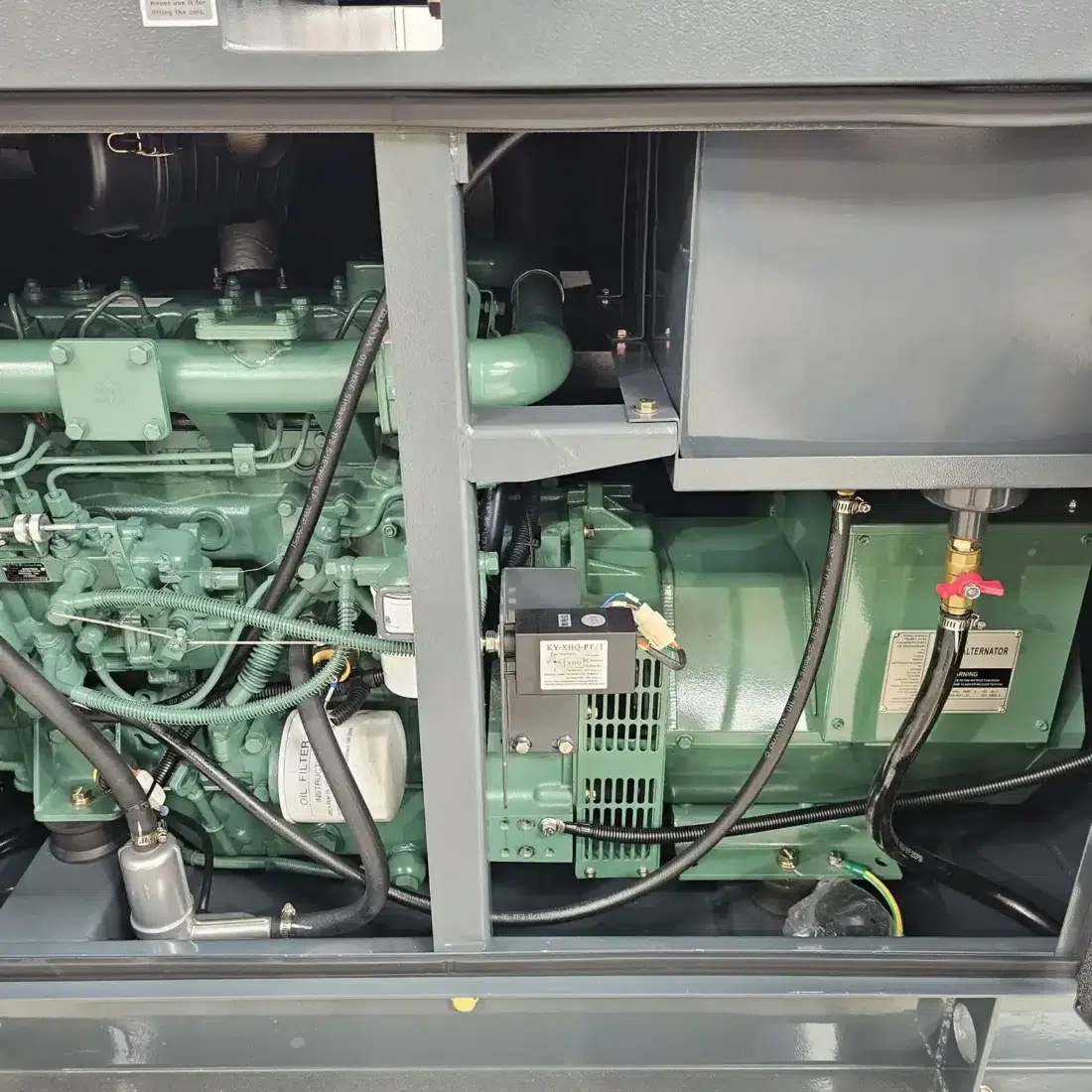

• Alternator Make: DEPCO
• Alternator Model: DPC184G
• Bearings: 1
• Insulation Class: H
• Ingress Protection: IP23
• Excitation System: Shunt
• Voltage Regulation: ±1%

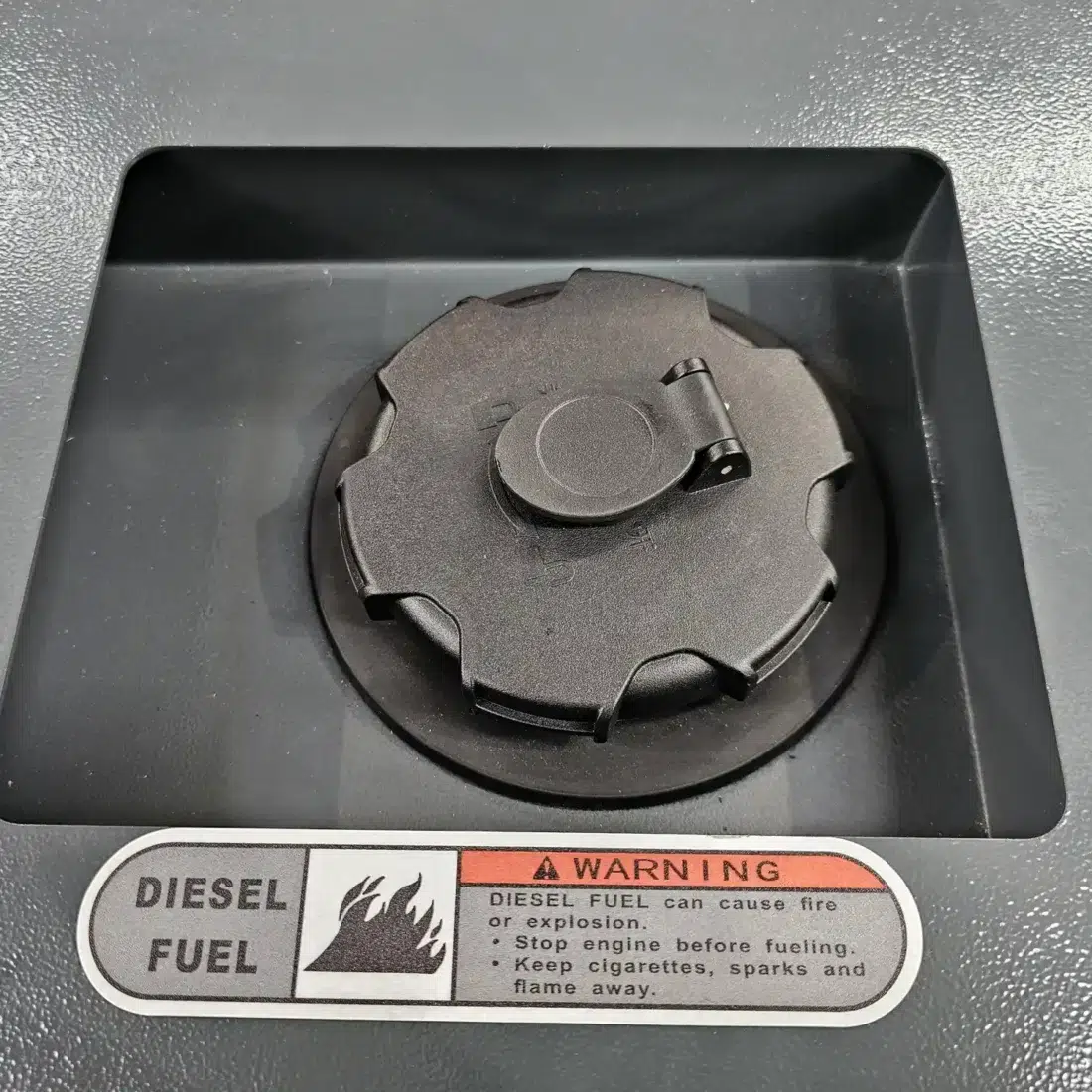

• Fuel Tank: 71.4L
• Weight: 673kg

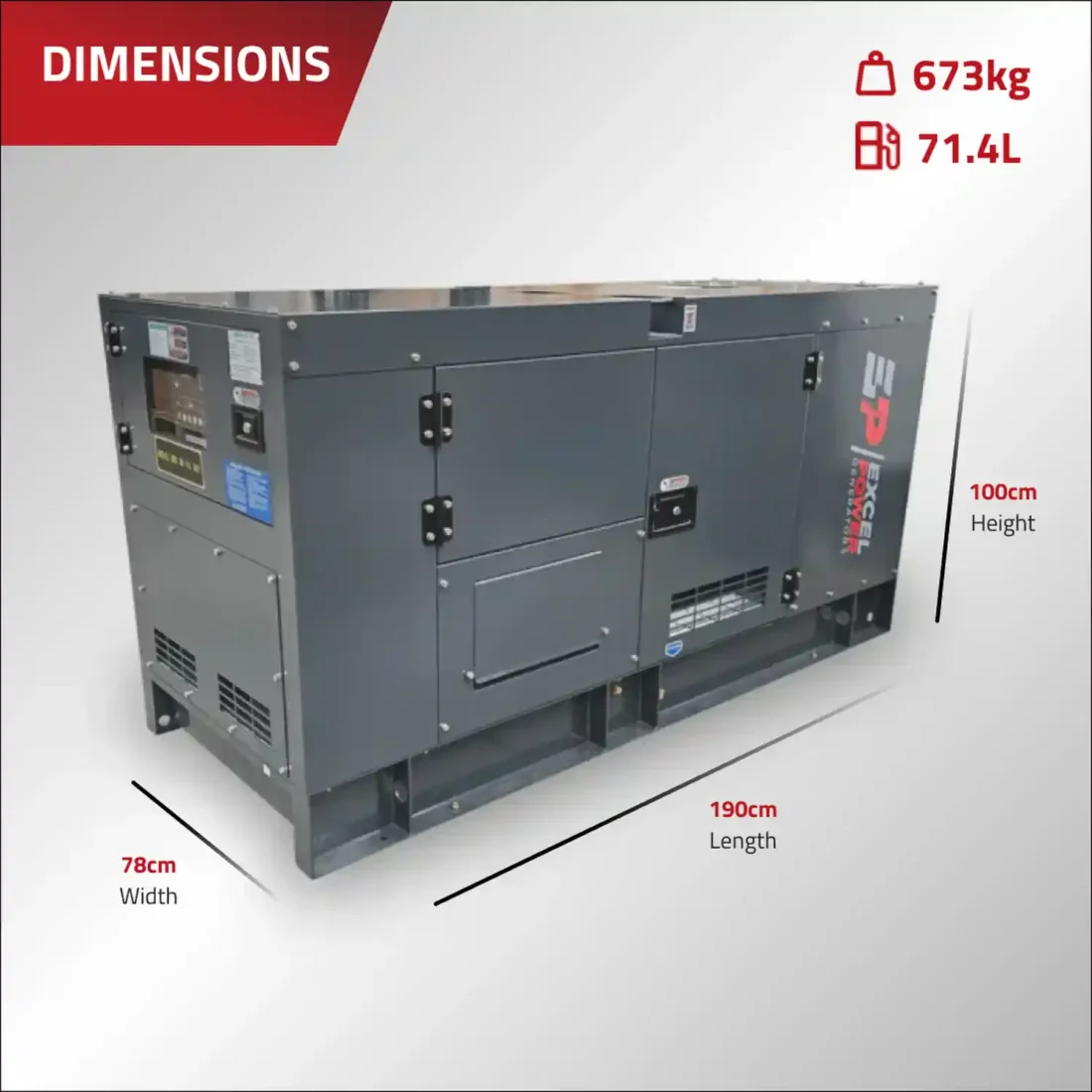

• Dimensions (L x W x H): 1900 x 780 x 1000mm

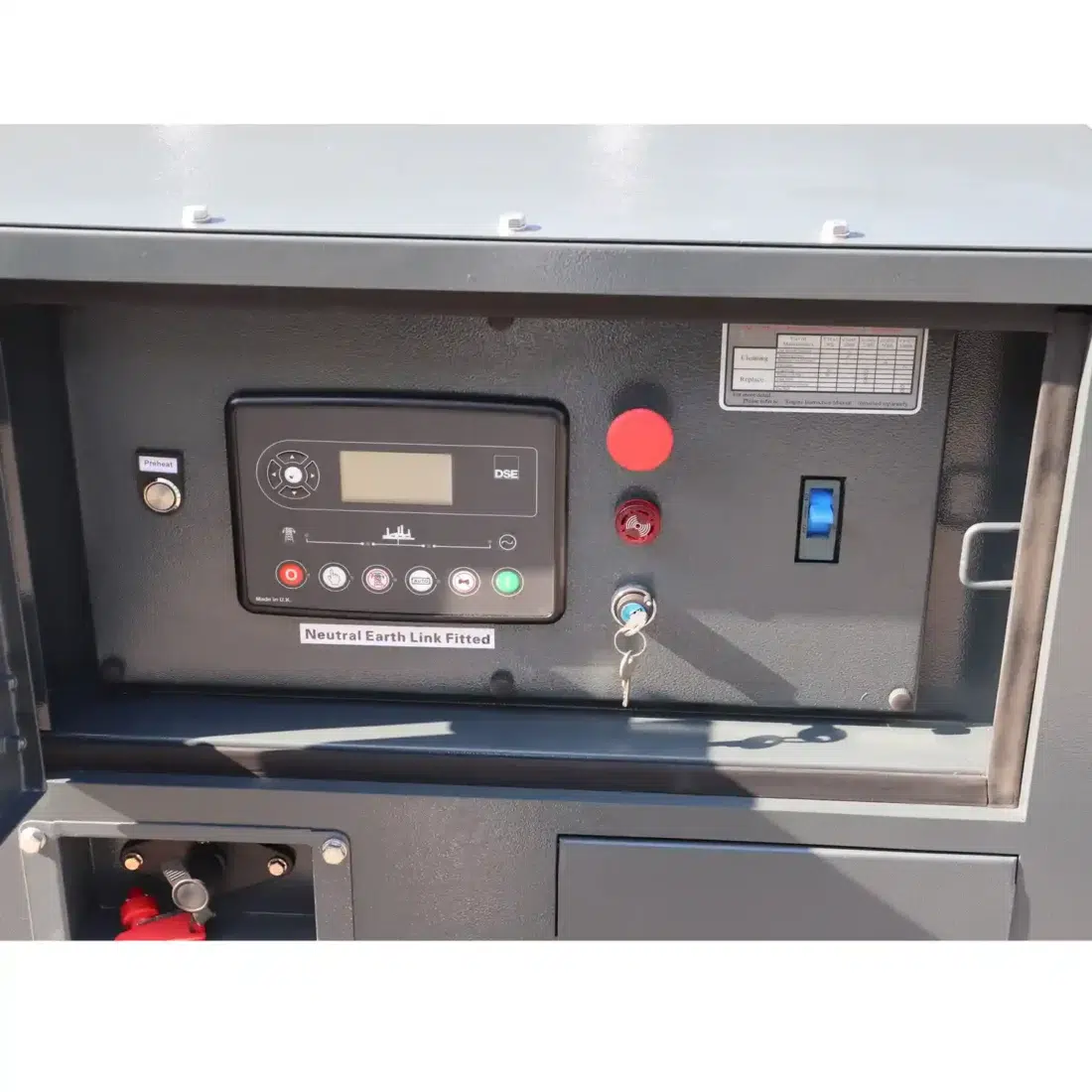

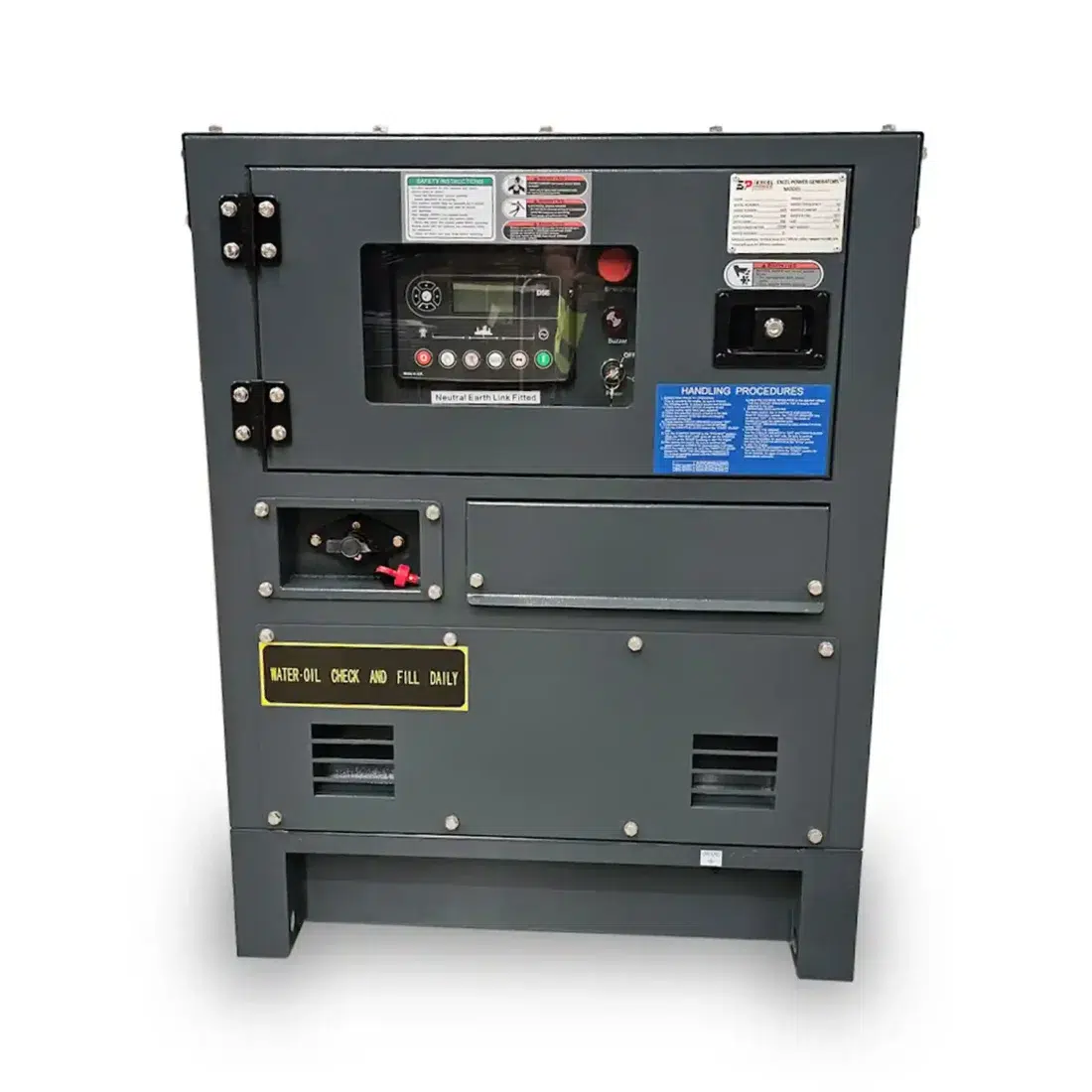

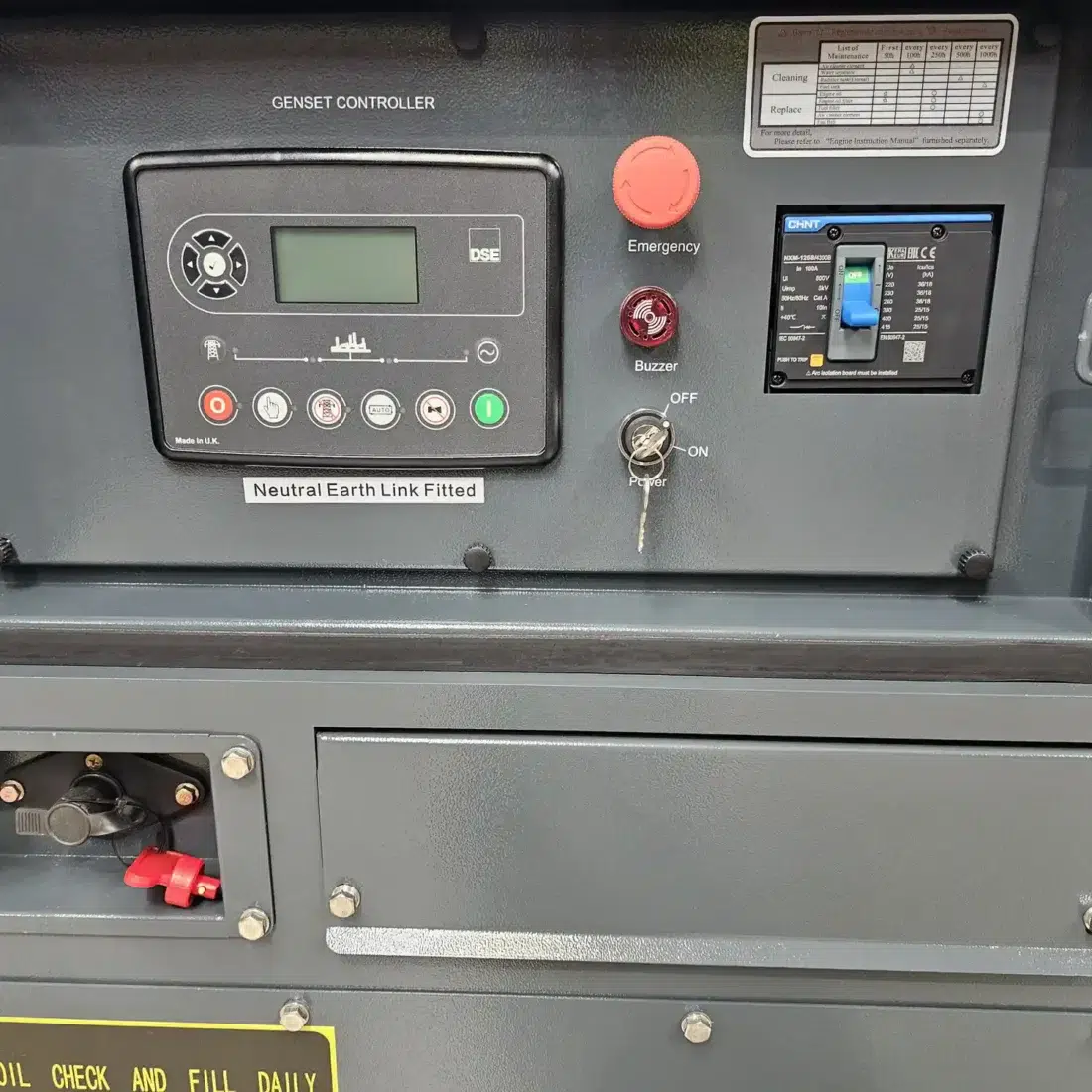

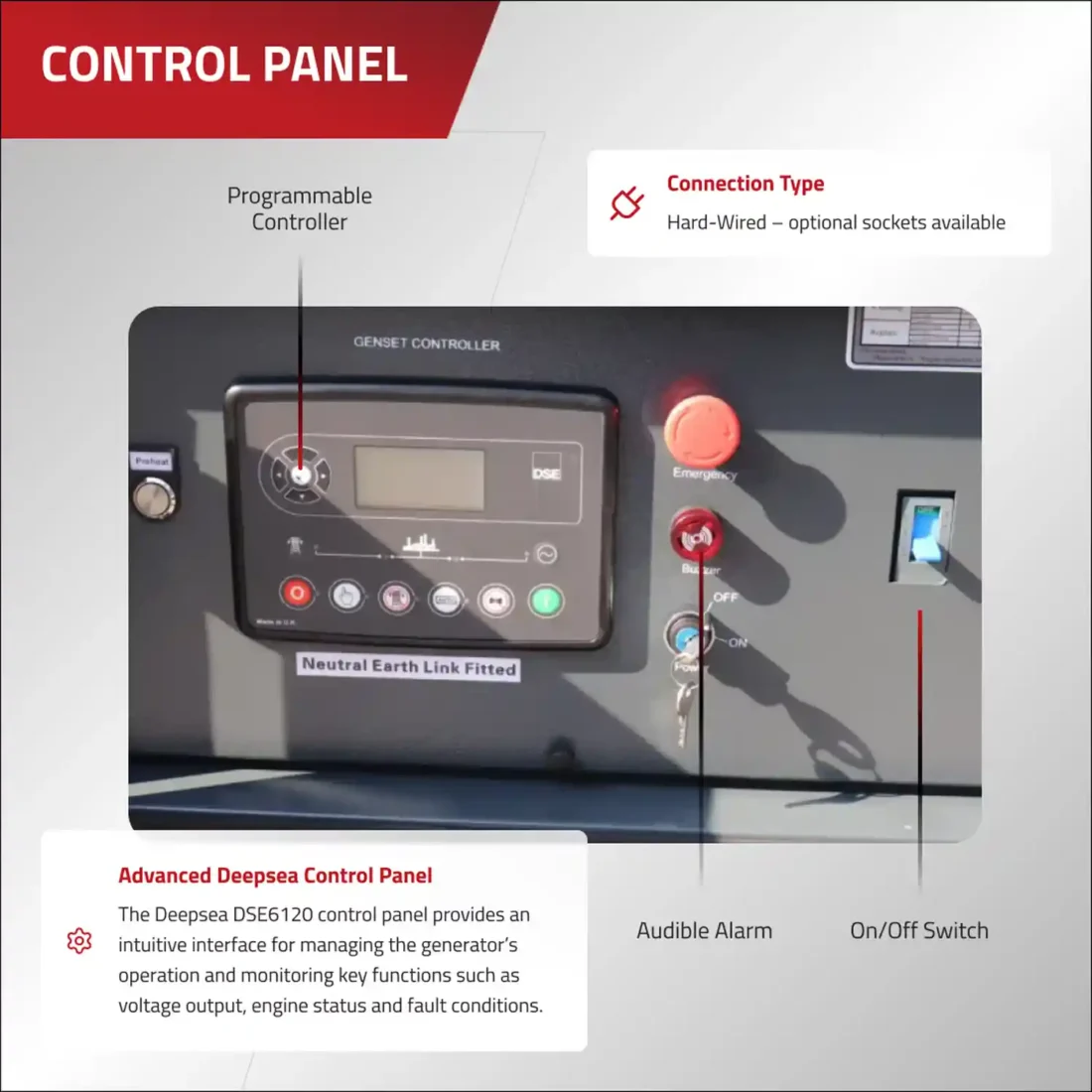

• Control Panel: Deepsea DSE6120
• Connection Type: Hard-Wired (Optional Sockets Available)
