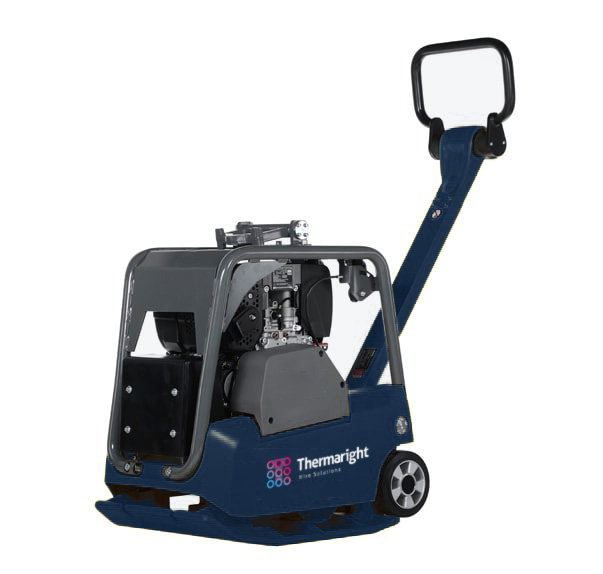

These Diesel Plate Compactors are suitable for applications such as; interlocking paving stones, service trenches, gardening and landscaping architecture as well as maintenance jobs are the only vibratory plates with integrated wheel sets for maximum mobility.
These Diesel Plate Compactors are suitable for applications such as; interlocking paving stones, service trenches, gardening and landscaping architecture as well as maintenance jobs are the only vibratory plates with integrated wheel sets for maximum mobility.
Centrifugal Force (KN): 25 / 30
Engine Power (KW): 3.1 / 5.4
Engine RPM: 3600 / 3600
Tank Capacity (LTRS): 3 / 3
Fuel Type: Diesel
Height (MM) : 1097 / 1101
Length (MM): 1292 / 1295
Plate Length (MM): 703 / 703
Plate Width (MM): 500 / 500
Sound Power Level: (LW DB[A]): 108 / 108
Starting system: Recoil / Electric
Travel Speed MAX (M /Min): 20 / 19
Weight (KG): 166 / 206
Width (MM): 500 / 500
